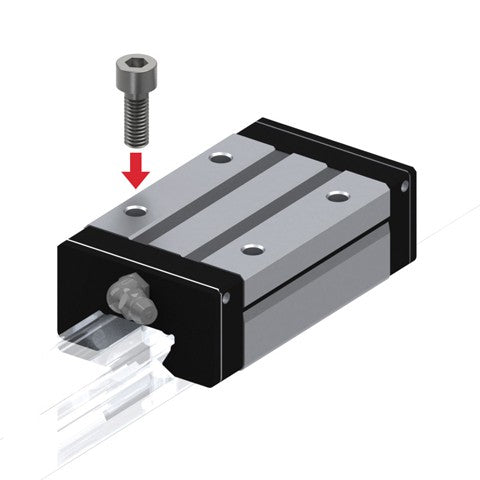

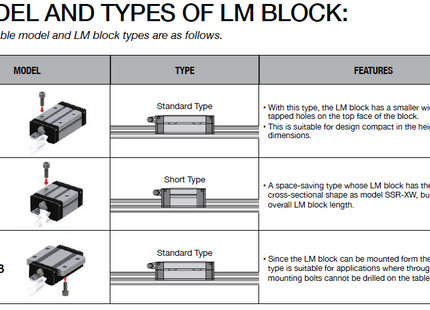

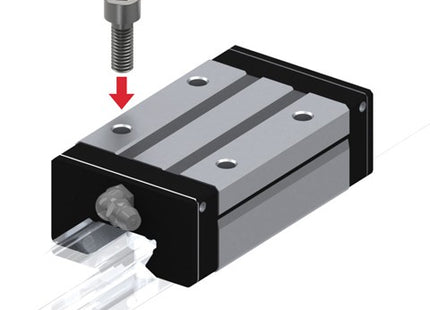

Description
Set / Single Item
Block Only

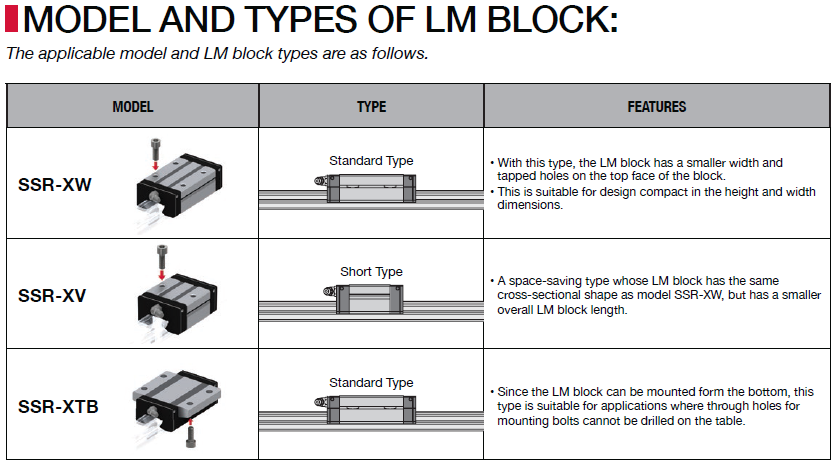

Block Type
[Standard] W: Standard
Rail Type
Standard
Mounting Height M(mm)
24
Material
Carbon Steel
Radial Clearance
Normal
Accuracy Grade
Normal Grade
Nominal Part Number
15
Ball Arrangement
4-Row, Circular
Retainer
Available
Lubrication System
N/A
Rolling Element
Ball
Basic Load Rating Dynamic Rating C(N)
14700
Basic Load Rating Static Rating Co(N)
16500
Allowable Static Moment MA(N⋅m)
79.2
Allowable Static Moment MB(N⋅m)
48.6
Allowable Static Moment MC(N⋅m)
96.2
Block Mounting Hole Pitch (Width Direction)(mm)
26
Block Mounting Hole Pitch (Length Direction)(mm)
26
Block Mounting Hole Diameter
4
Rail Mounting Hole Pitch(mm)
60
Rail Mounting Hole Diameter
4.5
Block external dimension W(mm)
34
Block external dimension L(mm)
56.9
Mounting hole for blocks
Tapped Holes
Number of Block Mounting Holes(holes)
4
Mounting Hole Dimension S(M)
M4
Mounting Hole Dimension H(ø)
-
Mounting Hole Screw Depth(mm)
7
Block dimension L1(mm)
39.9
Symbols for Dust Resistance
End and Side Seal
