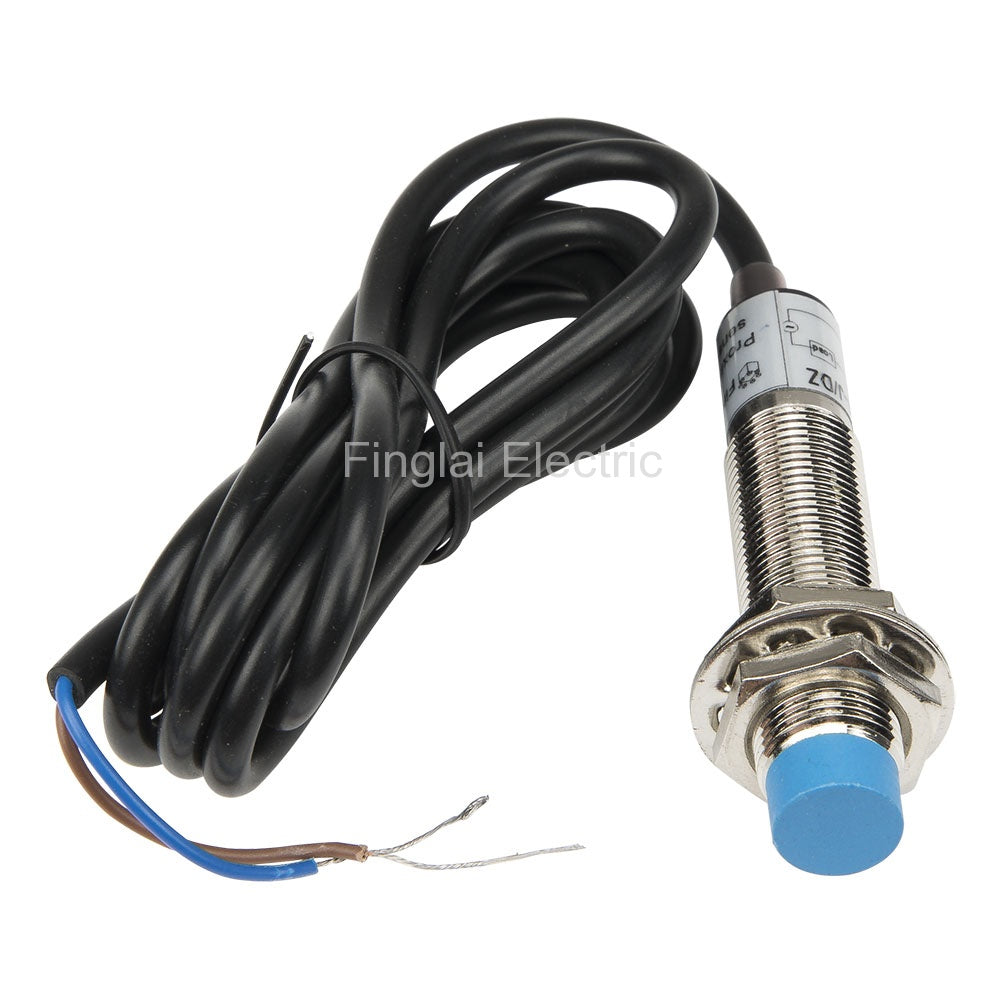

MODEL-LJ12A3-4-J/DZ M12 4MM AC 220V 2WIRE NC PROXIMITY SENSOR NC 220VAC RANGE 4MM DIA 18MM MAKE OMRON

Description

Current type Operating form Contact form Connection form Model number Remark Online store:
DC NPN NO Wire lead LJ12A3-4-Z/BX 6-36Vdc US $1.41/ pieceOrder
DC NPN NO Wire lead LJ12A3-4-Z/BX-D2 6-36Vdc, 2m cable US $1.55/ pieceOrder
DC NPN NO Wire lead LJ12A3-4-Z/BX-5V 5Vdc US $2.15/ pieceOrder
DC NPN NO Connector LJ12A3-4-Z/BX-G 6-36Vdc US $3.12/ pieceOrder
DC NPN NC Wire lead LJ12A3-4-Z/AX 6-36Vdc US $1.41/ pieceOrder
DC NPN NC Wire lead LJ12A3-4-Z/AX-5V 5Vdc US $2.15/ pieceOrder
DC NPN NO+NC Wire lead LJ12A3-4-Z/CX 6-36Vdc US $2.09/ pieceOrder
DC PNP NO Wire lead LJ12A3-4-Z/BY 6-36Vdc US $1.41/ pieceOrder
DC PNP NO Wire lead LJ12A3-4-Z/BY-5V 5Vdc US $2.15/ pieceOrder
DC PNP NO Connector LJ12A3-4-Z/BY-G 6-36Vdc US $3.12/ pieceOrder
DC PNP NC Wire lead LJ12A3-4-Z/AY 6-36Vdc US $1.41/ pieceOrder
DC PNP NO+NC Wire lead LJ12A3-4-Z/CY 6-36Vdc US $2.09/ pieceOrder
DC Two wires NO Wire lead LJ12A3-4-Z/EX 6-36Vdc US $1.49/ pieceOrder
DC Two wires NO Connector LJ12A3-4-Z/EX-G 6-36Vdc US $3.12/ pieceOrder
DC Two wires NC Wire lead LJ12A3-4-Z/DX 6-36Vdc US $1.77/ pieceOrder
AC Two wires NO Wire lead LJ12A3-4-J/EZ 90-250Vac US $1.77/ pieceOrder
AC Two wires NO Wire lead LJ12A3-4-J/EZ-36V 36Vac US $3.12/ pieceOrder
AC Two wires NO Wire lead LJ12A3-4-J/EZ-380V 380Vac US $3.12/ pieceOrder
AC Two wires NC Wire lead LJ12A3-4-J/DZ 90-250Vac Visiting...
AC Two wires NC Wire lead LJ12A3-4-J/DZ-36V 36Vac US $3.12/ pieceOrder
AC Two wires NC Wire lead LJ12A3-4-J/DZ-380V 380Vac US $3.12/ pieceOrder
▇ General
Model number LJ12A3-4 series
External dimensions M12x1x60
Installation type Non-shielded
Detection distance 4mm
Setting distance 0-3.2 mm
Supply voltage 6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current DC type: 300mA max; AC Type: 400mA
Standard detected object Mild steel (12x12x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency 500Hz
Matched mounting bracket M12 mounting bracket
Matched mounting connector Only for connector type: 3 wires bend connector, 3 wires straight connector
Output indication Red LED
Short-circuit protection No
Reverse connection protection Yes
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
IP Rating IP65
Operating temperature -25 to 70 ℃ (13 to 158 ℉)
Cable length 1.2m, PVC cable
Material Case: Brass-nickel plated; Sensing surface: ABS
Alias name LJ12A3-4 series cylinder inductive proximity switches

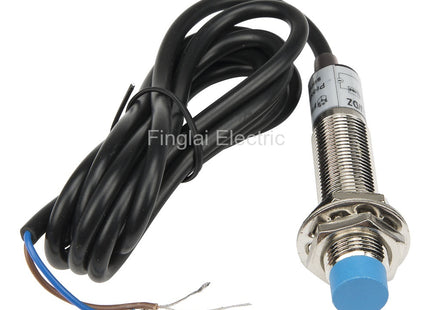

MODEL-LJ12A3-4-J/DZ M12 4MM AC 220V 2WIRE NC PROXIMITY SENSOR NC 220VAC RANGE 4MM DIA 18MM MAKE OMRON

Product form

Current type Operating form Contact form Connection form Model number Remark Online store:             This site            Aliexpress            Ebay           ... Read more

Out of stock

Rs. 720.00 Incl. VAT

      Description

      Current type Operating form Contact form Connection form Model number Remark Online store:
      DC NPN NO Wire lead LJ12A3-4-Z/BX 6-36Vdc US $1.41/ pieceOrder
      DC NPN NO Wire lead LJ12A3-4-Z/BX-D2 6-36Vdc, 2m cable US $1.55/ pieceOrder
      DC NPN NO Wire lead LJ12A3-4-Z/BX-5V 5Vdc US $2.15/ pieceOrder
      DC NPN NO Connector LJ12A3-4-Z/BX-G 6-36Vdc US $3.12/ pieceOrder
      DC NPN NC Wire lead LJ12A3-4-Z/AX 6-36Vdc US $1.41/ pieceOrder
      DC NPN NC Wire lead LJ12A3-4-Z/AX-5V 5Vdc US $2.15/ pieceOrder
      DC NPN NO+NC Wire lead LJ12A3-4-Z/CX 6-36Vdc US $2.09/ pieceOrder
      DC PNP NO Wire lead LJ12A3-4-Z/BY 6-36Vdc US $1.41/ pieceOrder
      DC PNP NO Wire lead LJ12A3-4-Z/BY-5V 5Vdc US $2.15/ pieceOrder
      DC PNP NO Connector LJ12A3-4-Z/BY-G 6-36Vdc US $3.12/ pieceOrder
      DC PNP NC Wire lead LJ12A3-4-Z/AY 6-36Vdc US $1.41/ pieceOrder
      DC PNP NO+NC Wire lead LJ12A3-4-Z/CY 6-36Vdc US $2.09/ pieceOrder
      DC Two wires NO Wire lead LJ12A3-4-Z/EX 6-36Vdc US $1.49/ pieceOrder
      DC Two wires NO Connector LJ12A3-4-Z/EX-G 6-36Vdc US $3.12/ pieceOrder
      DC Two wires NC Wire lead LJ12A3-4-Z/DX 6-36Vdc US $1.77/ pieceOrder
      AC Two wires NO Wire lead LJ12A3-4-J/EZ 90-250Vac US $1.77/ pieceOrder
      AC Two wires NO Wire lead LJ12A3-4-J/EZ-36V 36Vac US $3.12/ pieceOrder
      AC Two wires NO Wire lead LJ12A3-4-J/EZ-380V 380Vac US $3.12/ pieceOrder
      AC Two wires NC Wire lead LJ12A3-4-J/DZ 90-250Vac Visiting...
      AC Two wires NC Wire lead LJ12A3-4-J/DZ-36V 36Vac US $3.12/ pieceOrder
      AC Two wires NC Wire lead LJ12A3-4-J/DZ-380V 380Vac US $3.12/ pieceOrder
      ▇ General
      Model number LJ12A3-4 series
      External dimensions M12x1x60
      Installation type Non-shielded
      Detection distance 4mm
      Setting distance 0-3.2 mm
      Supply voltage 6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
      Output current DC type: 300mA max; AC Type: 400mA
      Standard detected object Mild steel (12x12x1mm)
      Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
      Response frequency 500Hz
      Matched mounting bracket M12 mounting bracket
      Matched mounting connector Only for connector type: 3 wires bend connector, 3 wires straight connector
      Output indication Red LED
      Short-circuit protection No
      Reverse connection protection Yes
      Insulation resistance 50MΩ min (between charging part and housing)
      Dielectric strength 1000Vac, 1min (between charging part and housing)
      IP Rating IP65
      Operating temperature -25 to 70 ℃ (13 to 158 ℉)
      Cable length 1.2m, PVC cable
      Material Case: Brass-nickel plated; Sensing surface: ABS
      Alias name LJ12A3-4 series cylinder inductive proximity switches
