Description

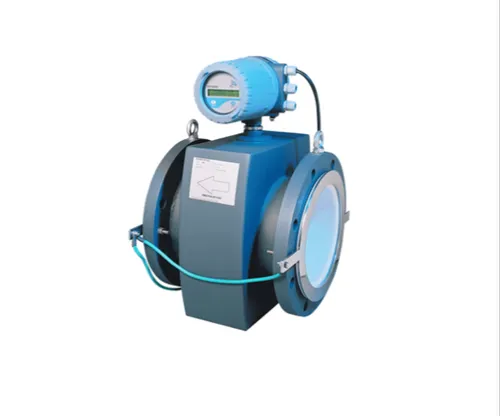

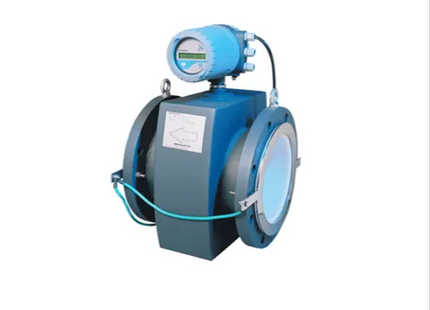

Nivomag-Model MFI 860, is a full featured micro-controller based magnetic flow meter. It's programming capabilities offers the user greater flexibility in configuring the instrument to his needs. The magflow meter is also available in remote version.
FEATURES
- Available in sizes from 10 NB to 600 NB
- IP 68 protection available for sensors.
- Built-in diagnostics
- Empty Pipe Detection
- Usable with corrosive and abrasive liquids and slurries.
- Remote Monitoring
- Bi-directional flow
Display of flow rate and totalized value in multiple units.
-
Power Supply: 90 Vac to 265 Vac, 50/60Hz
-
Accuracy: ± 0.5% of flow rate
-
Outputs: 4-20 mA, pulse, frequency, relay.
-
Local Display: 16x2 LCD Alphanumeric
-
Flow Range: 0.5m/s to 10m/s
-
Minimum Conductivity: 5 µS/cm (Micro Siemens/centimeter)
-
Ambient temperature: -20 to 60° C
-
Process temperature: up to 80° C; Optional: up to 150° C
-
Lining: PTFE, Rubber
-
Electrodes: SS 316,Hastalloy 'C', Titanium, Monel and Pt- Rh
Protection: IP67; Optional: IP 68
Typical applications of our magnetic flow meters are monitoring of fluids, filling, dosing and precise measurement in custody transfer
Media:-
-
Liquids – Potable Water, Raw Water, Chilled Water, Beverages, Juices
-
Corrosive Liquids – Acids, Alkalis, Chemical Solutions
Slurries & Pastes – Coal slurry, Sugar Syrup, Effluents, Sewage, MolassesThe electromagnetic flow meter works on the principle of Faraday's law of Electromagnetic Induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. This voltage is measured by the electronics and a corresponding output provided.
