Description

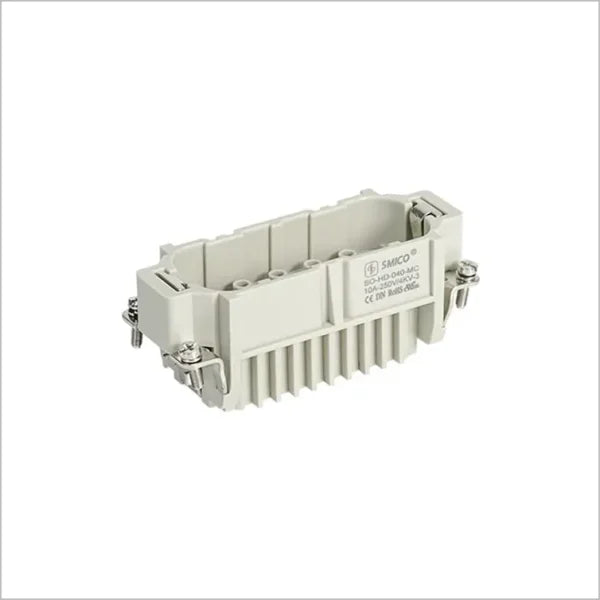

SO-HD-040-MC Male inserts,40P+E,10A/250V
HD-040 Electrical Heavy Duty Multi Pin Connector Multiple Male Plug
Heavy Duty Multi Pin Connector can according your demand to choose , and you may put the pins you need ,the more ones you may empty .09210403001
40Poles + PE, 10A Male Crimping terminal :
| Inserts |
Suitable Shell:16BHood/Housing |
| Number of contacts |
40 |
| Electrical data acc. to EN 61 984 |
|
| —Rated current |
10A |
| —Rated voltage conductor |
250V |
| —Rated impulse voltage |
4kV |
| —Pollution degree |
3 |
| —Pollution degree 2 also |
10A 230/400V 4kV 2 |
| —Rated voltage acc. to UL/CSA |
600V |
| —Rated voltage for wrap terminal acc. to CSA |
2A 30V |
| Insulation resistance |
≥1010Ω |
| Material |
polycarbonate |
| Limiting temperatures |
-40℃…+125℃ |
| Flammability acc. to UL 94 |
V0 |
| Mechanical working life(mating cycles) |
≥500 |
| Contacts |
| Material |
copper alloy |
| Surface |
hard-gold plated |
| hard-silver plated |
| Contact resistance |
≤3mΩ |
| Crimp terminal |
|
| —Wrie gauge |
0.14-2.5mm² |
| —AWG |
26-14 |
