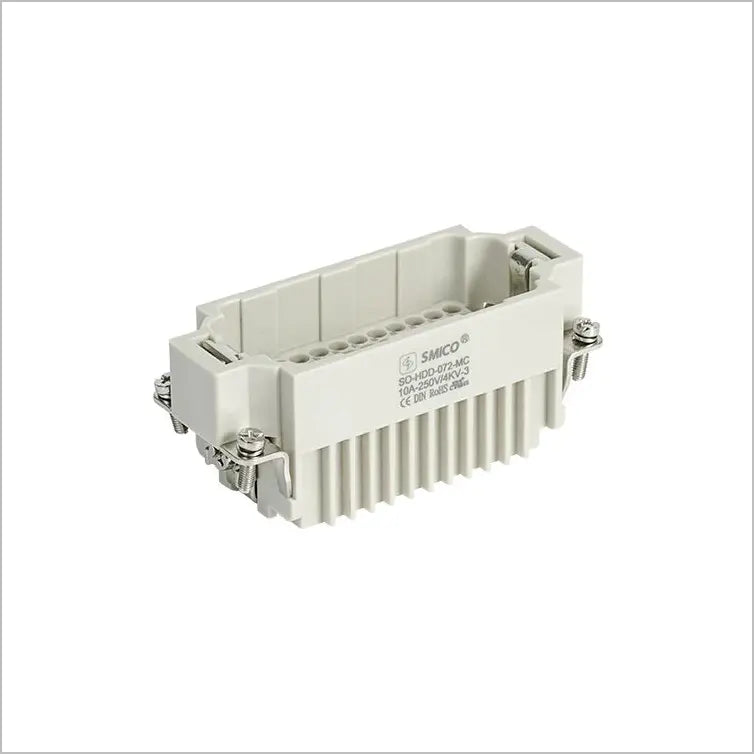

MODEL- MALE PIN CDSM 1.5 FOR (HDD-072-MC)

Description

Inserts Suitable Shell:16BHood/Housing
Number of contacts 72
Electrical data acc. to EN 61 984
—Rated current 10A
—Rated voltage conductor 250V
—Rated impulse voltage 4kV
—Pollution degree 3
—Pollution degree 2 also 10A 230/400V 4kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃…+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
—Wrie gauge 0.14-2.5mm²
—AWG

MODEL- MALE PIN CDSM 1.5 FOR (HDD-072-MC)

Product form

Inserts Suitable Shell:16BHood/Housing Number of contacts 72 Electrical data acc. to EN 61 984 —Rated current 10A —Rated voltage conductor... Read more

Rs. 112.00 Excl. VAT

    Description

    Inserts Suitable Shell:16BHood/Housing
    Number of contacts 72
    Electrical data acc. to EN 61 984
    —Rated current 10A
    —Rated voltage conductor 250V
    —Rated impulse voltage 4kV
    —Pollution degree 3
    —Pollution degree 2 also 10A 230/400V 4kV 2
    Rated voltage acc. to UL/CSA 600V
    Insulation resistance ≥1010Ω
    Material polycarbonate
    Limiting temperatures -40℃…+125℃
    Flammability acc. to UL 94 V0
    Mechanical working life(mating cycles) ≥500
    Contacts
    Material copper alloy
    Surface hard-gold plated
    hard-silver plated
    Contact resistance ≤3mΩ
    Crimp terminal
    —Wrie gauge 0.14-2.5mm²
    —AWG
