TypeMSF72Displacement volume (cm³)1,50Displacement volume (in³)0,09Discharge (bar)860Discharge (psi)12470Air Drive Pressure min. (bar)1Air Drive Pressure min. (psi)14.5Air Drive Pressure max. (bar)10Air Drive Pressure max. (psi)145Weight (kg)3,50Flow (cfm)0,02Flow (l/min)0,48Inlet (in)3/8Outlet (in)3/8Drive Air (in)3/8Operating Temperature max. (°C)60Height (mm)247,00Depth (mm)108,00Width (mm)112,00

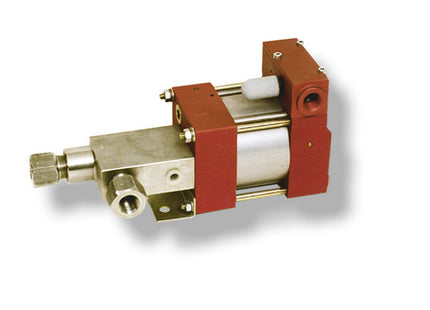

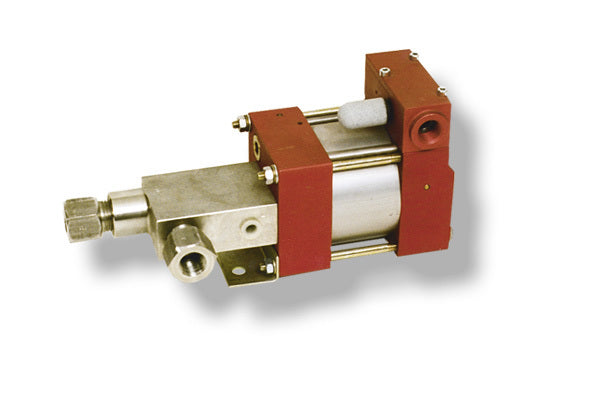

MSF pumps
single acting
single air drive head and distance piece
Pressures to 1,450 bar (21,025 psi)
MSF series pumps are rugged and designed for chemical service applications. These pumps are available as single acting types with single air drive head and distance piece.
For air drive pressures from 1 bar (14.5 psi) minimum to 10 bar (145 psi) maximum MSF pumps have stainless steel bodies and plungers.
MSF pumps have PTFE seals with Viton O-rings.
Pumps come standard with bottom inlet.
