MODEL - MCB 32 AMP 3 POLE -MAKE - SCHIENDER

Description

Main
Range Acti9
Product name Disbo iC60
Product or component type Miniature circuit-breaker
Device short name iC60H
Poles description 3P
Number of protected poles 3
[In] rated current 32 A
Network type AC/DC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 42 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2
10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
Utilisation category Category A conforming to EN/IEC 60947-2
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 12...133 V AC 50/60 Hz
220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
440 V AC 50/60 Hz
<= 180 V DC
Magnetic tripping limit 8 x In +/- 20 %
[Ics] rated service breaking capacity 21 kA 50 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz
15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
15 kA 100 % conforming to EN/IEC 60947-2 - <= 180 V DC
Limitation class 3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Contact position indicator Yes
Control type Toggle
Local signalling Trip indicator
mounting mode Clip-on
Mounting support Rail
9 mm pitches 6
Height 85 mm
Width 54 mm
Depth 78.5 mm
Product weight 0.375 kg
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Provision for padlocking Padlockable
Connections - terminals Single terminal (top or bottom) 1…35 mm² rigid
Single terminal (top or bottom) 1…25 mm² flexible
Wire stripping length 14 mm for top or bottom connection
Tightening torque 3.5 N.m top or bottom
Earth-leakage protection Separate block
Environment
Standards EN/IEC 60947-2
EN/IEC 60898-1
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 3 conforming to EN/IEC 60947-2
Overvoltage category IV
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % at 55 °C
Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 5.400 cm
Package 1 Length 9.000 cm
Package 1 Weight 359.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 4
Package 2 Height 8.500 cm
Package 2 Width 9.800 cm
Package 2 Length 22.000 cm
Package 2 Weight 1.488 kg
Unit Type of Package 3 S03
Number of Units in Package 3 44
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 16.966 kg
Contractual warranty
Warranty (in months) 18

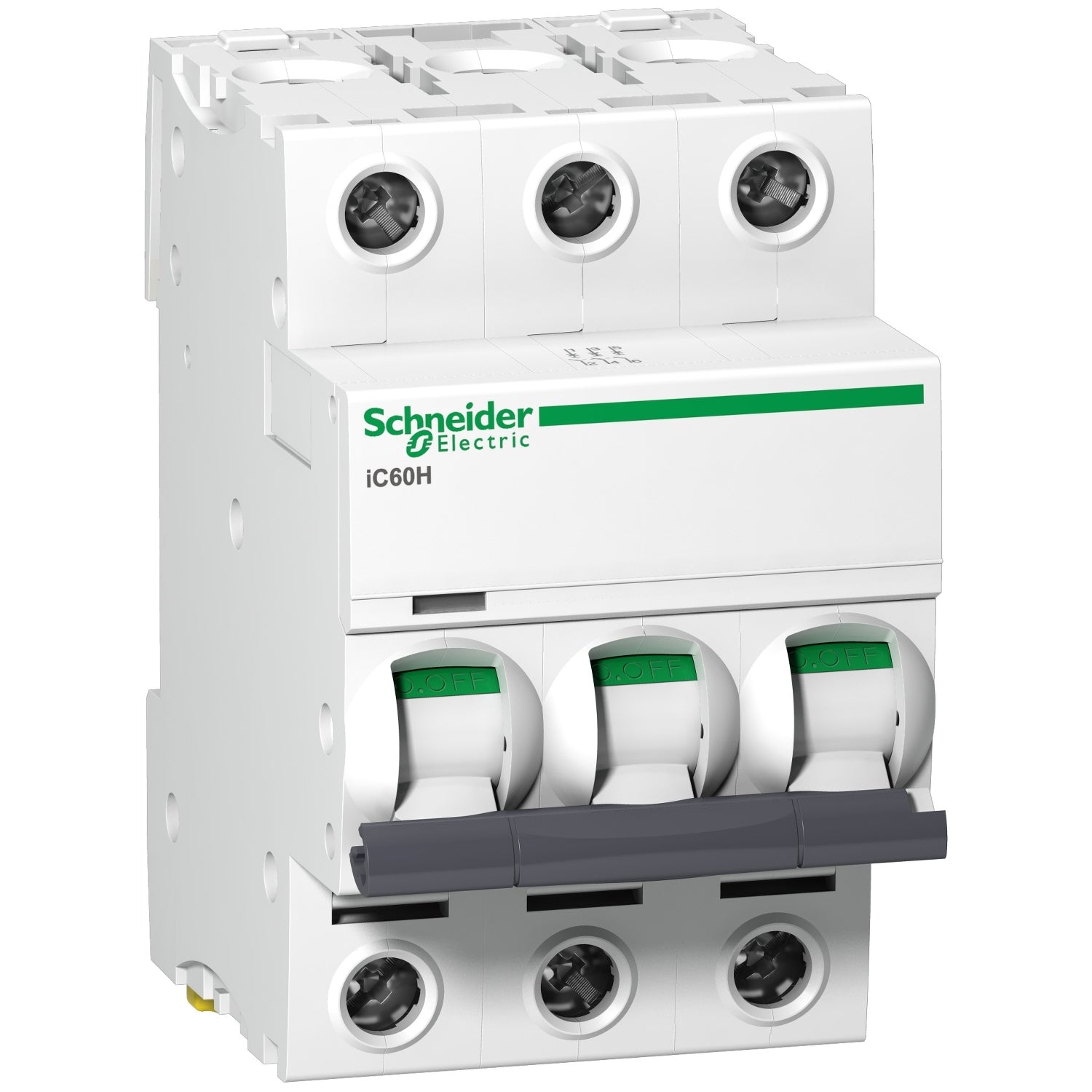

MODEL - MCB 32 AMP 3 POLE -MAKE - SCHIENDER

Product form

Main Range Acti9 Product name Disbo iC60 Product or component type Miniature circuit-breaker Device short name iC60H Poles description 3P... Read more

Rs. 900.00 Excl. VAT

  • Shipped today? Order within: Aug 11, 2026 17:00:00 -0400

    Description

    Main
    Range Acti9
    Product name Disbo iC60
    Product or component type Miniature circuit-breaker
    Device short name iC60H
    Poles description 3P
    Number of protected poles 3
    [In] rated current 32 A
    Network type AC/DC
    Trip unit technology Thermal-magnetic
    Curve code C
    Breaking capacity 42 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
    30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
    15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
    10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
    15 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2
    10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
    Utilisation category Category A conforming to EN/IEC 60947-2
    Complementary
    Network frequency 50/60 Hz
    [Ue] rated operational voltage 12...133 V AC 50/60 Hz
    220...240 V AC 50/60 Hz
    380...415 V AC 50/60 Hz
    440 V AC 50/60 Hz
    <= 180 V DC
    Magnetic tripping limit 8 x In +/- 20 %
    [Ics] rated service breaking capacity 21 kA 50 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz
    15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
    7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
    5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
    15 kA 100 % conforming to EN/IEC 60947-2 - <= 180 V DC
    Limitation class 3 conforming to EN/IEC 60898-1
    [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
    [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
    Contact position indicator Yes
    Control type Toggle
    Local signalling Trip indicator
    mounting mode Clip-on
    Mounting support Rail
    9 mm pitches 6
    Height 85 mm
    Width 54 mm
    Depth 78.5 mm
    Product weight 0.375 kg
    Colour White
    Mechanical durability 20000 cycles
    Electrical durability 10000 cycles
    Provision for padlocking Padlockable
    Connections - terminals Single terminal (top or bottom) 1…35 mm² rigid
    Single terminal (top or bottom) 1…25 mm² flexible
    Wire stripping length 14 mm for top or bottom connection
    Tightening torque 3.5 N.m top or bottom
    Earth-leakage protection Separate block
    Environment
    Standards EN/IEC 60947-2
    EN/IEC 60898-1
    IP degree of protection IP20 conforming to IEC 60529
    Pollution degree 3 conforming to EN/IEC 60947-2
    Overvoltage category IV
    Tropicalisation 2 conforming to IEC 60068-1
    Relative humidity 95 % at 55 °C
    Ambient air temperature for operation -35…70 °C
    Ambient air temperature for storage -40…85 °C
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 7.500 cm
    Package 1 Width 5.400 cm
    Package 1 Length 9.000 cm
    Package 1 Weight 359.000 g
    Unit Type of Package 2 BB1
    Number of Units in Package 2 4
    Package 2 Height 8.500 cm
    Package 2 Width 9.800 cm
    Package 2 Length 22.000 cm
    Package 2 Weight 1.488 kg
    Unit Type of Package 3 S03
    Number of Units in Package 3 44
    Package 3 Height 30.000 cm
    Package 3 Width 30.000 cm
    Package 3 Length 40.000 cm
    Package 3 Weight 16.966 kg
    Contractual warranty
    Warranty (in months) 18
