Description
DELIVERY PERIOD : 1-2 WEEKS
[Type] Circuit Protector
[Series Name] CP Series
Frame A: 30

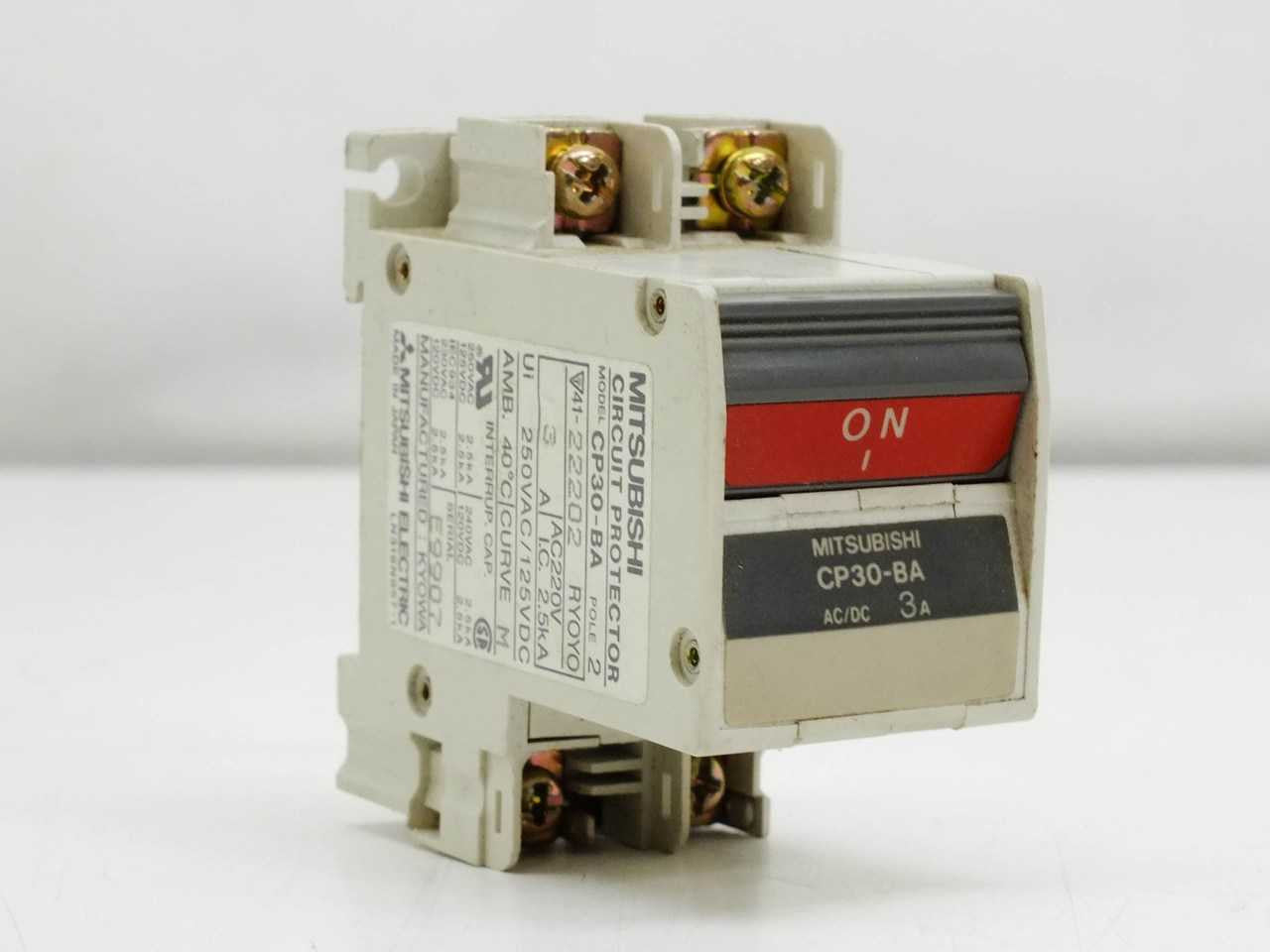

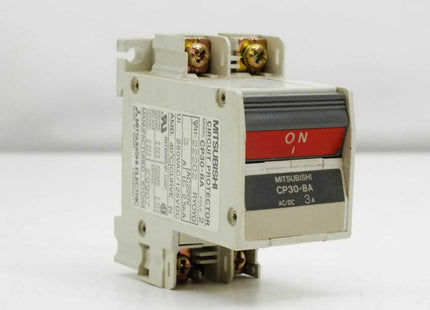

Model: CP30-BA 2P 1-M
Poles: 2
[Rated Current (A)] 3
[Rated insulation voltage (V)] 250
[Rated impulse resistance voltage (kV)] 2.5
[Current type] AC/DC
[Reverse connection] Yes
[Open and close life (times)]
Mechanical 10000
Electrical 6000
[Standard Ambient Temperature] 40 (T40)
[Internal Circuit] Series
[Characteristics] Medium speed
Pull off system: Medium speed
[Connection method] Screw terminal
Operating Method: S-type (IEC 60934)
[Pull off free/Operating system] Trip-free (IEC 60934)
[External Dimensions (mm)]
a 35
b 73
c 65
ca 65
Product Weight: 0.3 lbs (0.16 kg).
[Installation Method]
Surface mount
IEC 35mm Rail Mount
Flush Mount
[Marine Association Certified] NK acquired
