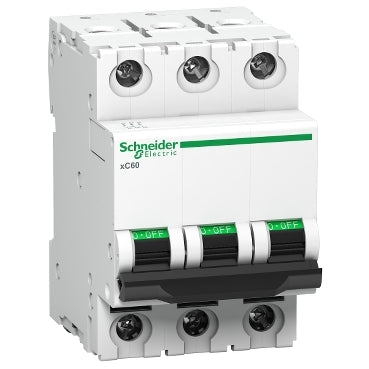

MODEL- MCB 63 AMP 3 POLE - MAKE- SCHIENDER

Description

Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
Poles description 3P
Number of protected poles 3
[In] rated current 63 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code B
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
Magnetic tripping limit 3...5 x In
Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
10000 A Icn at 415 V AC 50/60 Hz conforming to IS/IEC 60898-1
Limitation class 3 conforming to IS/IEC 60898-1
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution block compatibility Top: YES
9 mm pitches 6
Height 85 mm
Width 54 mm
Depth 77.5 mm
Product weight 0.31 kg
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Biconnect (bottom)
Tunnel type terminals (bottom) 0.33…25 mm² flexible
Tunnel type terminals (bottom) 0.5…35 mm² rigid
Wire stripping length 13 mm for top or bottom connection
Tightening torque 3.5 N.m
Earth-leakage protection Separate block
Product compatibility C60 auxiliary
C60 accessories
Overvoltage category IV
Environment
Standards IS/IEC 60898-1
IP degree of protection IP20
Pollution degree 3
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % at 55 °C
Ambient air temperature for operation -30…70 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.1 cm
Package 1 Width 5.35 cm
Package 1 Length 7.4 cm
Package 1 Weight 390 g
Unit Type of Package 2 BB1
Number of Units in Package 2 4
Package 2 Height 8 cm
Package 2 Width 9 cm
Package 2 Length 23.8 cm
Package 2 Weight 1.622 kg
Unit Type of Package 3 CAR
Number of Units in Package 3 48
Package 3 Height 27 cm
Package 3 Width 30 cm
Package 3 Length 35 cm
Package 3 Weight 20.064 kg
Contractual warranty
Warranty (in months) 18

MODEL- MCB 63 AMP 3 POLE - MAKE- SCHIENDER

Product form

Main Device application Distribution Range of product Acti9 Range Acti9 Product name XC60 Product or component type Miniature circuit-breaker Device... Read more

Rs. 1,400.00 Excl. VAT

  • Shipped today? Order within: Aug 11, 2026 17:00:00 -0400

    Description

    Main
    Device application Distribution
    Range of product Acti9
    Range Acti9
    Product name XC60
    Product or component type Miniature circuit-breaker
    Device short name xC60
    Poles description 3P
    Number of protected poles 3
    [In] rated current 63 A
    Network type AC
    Trip unit technology Thermal-magnetic
    Curve code B
    Complementary
    Network frequency 50/60 Hz
    [Ue] rated operational voltage 220...240 V AC 50/60 Hz
    380...415 V AC 50/60 Hz
    Magnetic tripping limit 3...5 x In
    Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
    10000 A Icn at 415 V AC 50/60 Hz conforming to IS/IEC 60898-1
    Limitation class 3 conforming to IS/IEC 60898-1
    Contact position indicator Yes
    Control type Toggle
    Local signalling ON/OFF indication
    mounting mode Clip-on
    Mounting support 35 mm DIN rail
    Comb busbar and distribution block compatibility Top: YES
    9 mm pitches 6
    Height 85 mm
    Width 54 mm
    Depth 77.5 mm
    Product weight 0.31 kg
    Colour White
    Mechanical durability 20000 cycles
    Electrical durability 10000 cycles
    Connections - terminals Biconnect (bottom)
    Tunnel type terminals (bottom) 0.33…25 mm² flexible
    Tunnel type terminals (bottom) 0.5…35 mm² rigid
    Wire stripping length 13 mm for top or bottom connection
    Tightening torque 3.5 N.m
    Earth-leakage protection Separate block
    Product compatibility C60 auxiliary
    C60 accessories
    Overvoltage category IV
    Environment
    Standards IS/IEC 60898-1
    IP degree of protection IP20
    Pollution degree 3
    Tropicalisation 2 conforming to IEC 60068-1
    Relative humidity 95 % at 55 °C
    Ambient air temperature for operation -30…70 °C
    Ambient air temperature for storage -40…85 °C
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 8.1 cm
    Package 1 Width 5.35 cm
    Package 1 Length 7.4 cm
    Package 1 Weight 390 g
    Unit Type of Package 2 BB1
    Number of Units in Package 2 4
    Package 2 Height 8 cm
    Package 2 Width 9 cm
    Package 2 Length 23.8 cm
    Package 2 Weight 1.622 kg
    Unit Type of Package 3 CAR
    Number of Units in Package 3 48
    Package 3 Height 27 cm
    Package 3 Width 30 cm
    Package 3 Length 35 cm
    Package 3 Weight 20.064 kg
    Contractual warranty
    Warranty (in months) 18
