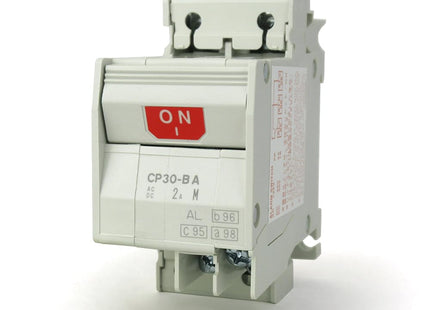

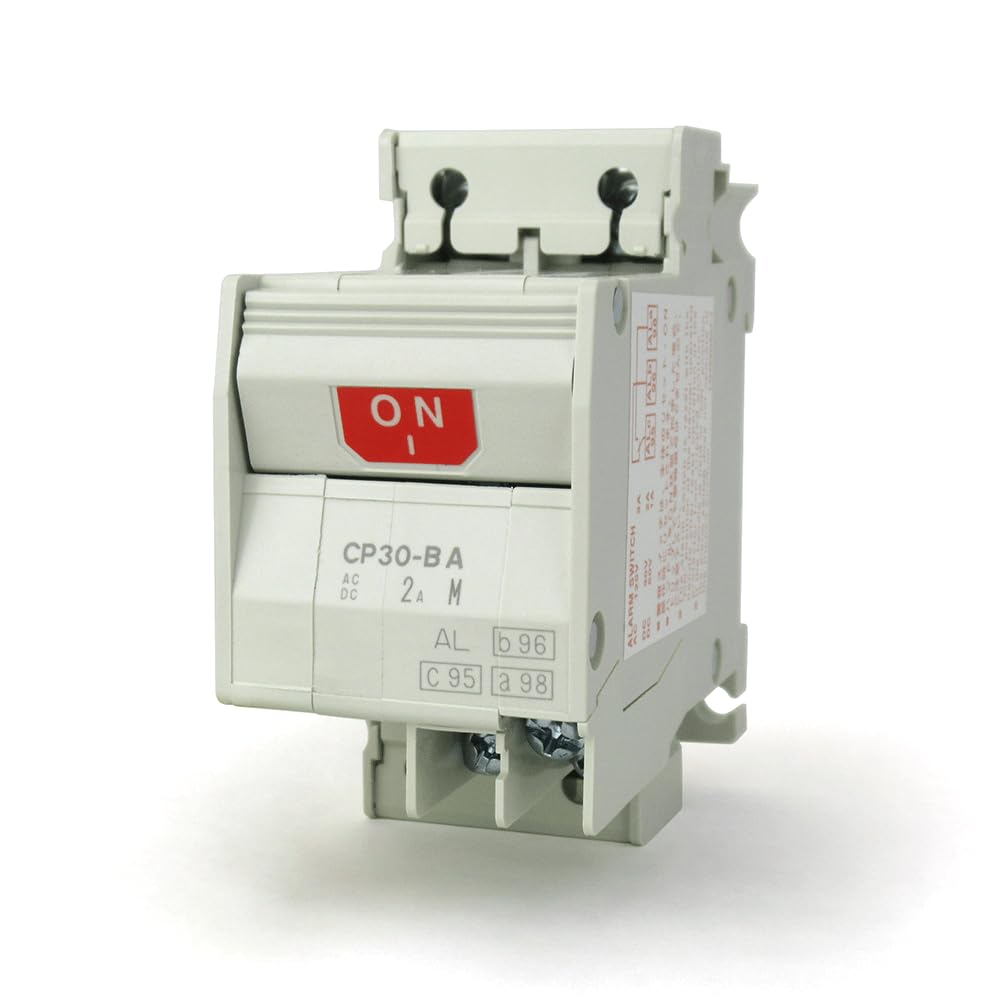

MODEL-MCB CB-30-BA 2A 2P MAKE MITSUBISHI

Description

DELIVERY PERIOD : 1- 2 WEEKS

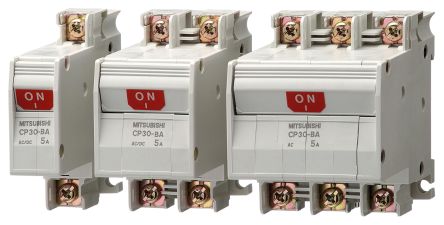

Model CP30-BA Features

What is a Circuit Protector?

  • Mainly used to protect low capacity control circuits, heaters, motors, solenoid valves, transformers, electronic circuits, etc., that cannot be protected with MCCB.
  • Saves space for various control circuits in equipment and control panels, etc.

Circuit Protector Features

Open/close type small terminal cover is standard equipment.

Open/close type small terminal cover is standard equipment.

Open/close type small terminal cover + wire marker sleeve insulation provides good finger protection (IP20 supported from front direction [TÜV-certified]). Added finger protection from the direction of cable insertion.

Open/close type small terminal cover + wire marker sleeve insulation provides good finger protection (IP20 supported from front direction [TÜV-certified]). Added finger protection from the direction of cable insertion.

Can open and close with a single action, making terminal check easy when shipping panels or when performing initial inspection. Easy to check terminals during maintenance.

Can open and close with a single action, making terminal check easy when shipping panels or when performing initial inspection.
Easy to check terminals during maintenance.

Even if the terminal cover is closed, the wire marker sleeve symbol is not hidden and can be checked at a glance.

Even if the terminal cover is closed, the wire marker sleeve symbol is not hidden and can be checked at a glance.

Insulation resistance measurement and energization inspection are possible even when the terminal cover is closed.

Insulation resistance measurement and energization inspection are possible even when the terminal cover is closed.

Type for Both AC and DC Use

Type for both AC and DC use. Can be used as is for circuits not more than 250 V AC and 65 V DC.

Space Saving

  • Compact, with an extremely thin width of 17.5 mm per pole.
  • Greatly contributes to space saving, particularly when using a large quantity.

Model CP30-BA Specifications

Model CP30-BA
Number of Poles 1 2 3
Rated current In (A) 0.1 0.25 0.3 0.5 1 2 3 5 7 10 15 20 30
Rated
breaking
current



(kA)		 UL 1077
CSA C22.2
No.235		 Rated voltage V AC 250
V AC 65 125 -
AC 2.5 kA at 250 V
DC 2.5 kA at 65 V 2.5 kA at 125 V -
IEC 60934
EN 60934
GB 17701 (*3)
(Icn)		 Rated insulation voltage
Ui V		 250
AC 2.5 kA at 230 V
DC 2.5 kA at 60 V 2.5 kA at 120 V -
JIS C 4610
(Icn)		 Rated insulation voltage
Ui V		 250
AC 2.5 kA at 230 V
DC 2.5 kA at 60 V 2.5 kA at 120 V -
IEC 60947-2
EN 60947-2
JIS C 8201-2-1
Ann.1(Icu/Ics)		 Rated insulation voltage
Ui V		 250
AC 2.5/2.5 kA at 230 V
DC   2.5/2.5 kA at 120 V -
AC/DC common use Common use - (*1)
Operating characteristics Instantaneous type (I); medium-speed type (M), (MD); low-speed type (S),
(SD); high-speed type (F) (*2)
Standard equipment IEC 35-mm rail mounting tool

(*1) 3-pole products are dedicated to AC use.
(*2) Please inquire regarding operating characteristics for those other than the instantaneous type (I); medium-speed type (M), (MD); low-speed type (S), (SD); and high-speed type (F).
(*3) CP30-BA only.


MODEL-MCB CB-30-BA 2A 2P MAKE MITSUBISHI

Product form

DELIVERY PERIOD : 1- 2 WEEKS Model CP30-BA Features What is a Circuit Protector? Mainly used to protect low capacity... Read more

Rs. 4,484.00 Incl. VAT

      Description

      DELIVERY PERIOD : 1- 2 WEEKS

      Model CP30-BA Features

      What is a Circuit Protector?

      • Mainly used to protect low capacity control circuits, heaters, motors, solenoid valves, transformers, electronic circuits, etc., that cannot be protected with MCCB.
      • Saves space for various control circuits in equipment and control panels, etc.

      Circuit Protector Features

      Open/close type small terminal cover is standard equipment.

      Open/close type small terminal cover is standard equipment.

      Open/close type small terminal cover + wire marker sleeve insulation provides good finger protection (IP20 supported from front direction [TÜV-certified]). Added finger protection from the direction of cable insertion.

      Open/close type small terminal cover + wire marker sleeve insulation provides good finger protection (IP20 supported from front direction [TÜV-certified]). Added finger protection from the direction of cable insertion.

      Can open and close with a single action, making terminal check easy when shipping panels or when performing initial inspection. Easy to check terminals during maintenance.

      Can open and close with a single action, making terminal check easy when shipping panels or when performing initial inspection.
      Easy to check terminals during maintenance.

      Even if the terminal cover is closed, the wire marker sleeve symbol is not hidden and can be checked at a glance.

      Even if the terminal cover is closed, the wire marker sleeve symbol is not hidden and can be checked at a glance.

      Insulation resistance measurement and energization inspection are possible even when the terminal cover is closed.

      Insulation resistance measurement and energization inspection are possible even when the terminal cover is closed.

      Type for Both AC and DC Use

      Type for both AC and DC use. Can be used as is for circuits not more than 250 V AC and 65 V DC.

      Space Saving

      • Compact, with an extremely thin width of 17.5 mm per pole.
      • Greatly contributes to space saving, particularly when using a large quantity.

      Model CP30-BA Specifications

      Model CP30-BA
      Number of Poles 1 2 3
      Rated current In (A) 0.1 0.25 0.3 0.5 1 2 3 5 7 10 15 20 30
      Rated
      breaking
      current



      (kA)      		 UL 1077
      CSA C22.2
      No.235      		 Rated voltage V AC 250
      V AC 65 125 -
      AC 2.5 kA at 250 V
      DC 2.5 kA at 65 V 2.5 kA at 125 V -
      IEC 60934
      EN 60934
      GB 17701 (*3)
      (Icn)      		 Rated insulation voltage
      Ui V      		 250
      AC 2.5 kA at 230 V
      DC 2.5 kA at 60 V 2.5 kA at 120 V -
      JIS C 4610
      (Icn)      		 Rated insulation voltage
      Ui V      		 250
      AC 2.5 kA at 230 V
      DC 2.5 kA at 60 V 2.5 kA at 120 V -
      IEC 60947-2
      EN 60947-2
      JIS C 8201-2-1
      Ann.1(Icu/Ics)      		 Rated insulation voltage
      Ui V      		 250
      AC 2.5/2.5 kA at 230 V
      DC   2.5/2.5 kA at 120 V -
      AC/DC common use Common use - (*1)
      Operating characteristics Instantaneous type (I); medium-speed type (M), (MD); low-speed type (S),
      (SD); high-speed type (F) (*2)
      Standard equipment IEC 35-mm rail mounting tool

      (*1) 3-pole products are dedicated to AC use.
      (*2) Please inquire regarding operating characteristics for those other than the instantaneous type (I); medium-speed type (M), (MD); low-speed type (S), (SD); and high-speed type (F).
      (*3) CP30-BA only.
