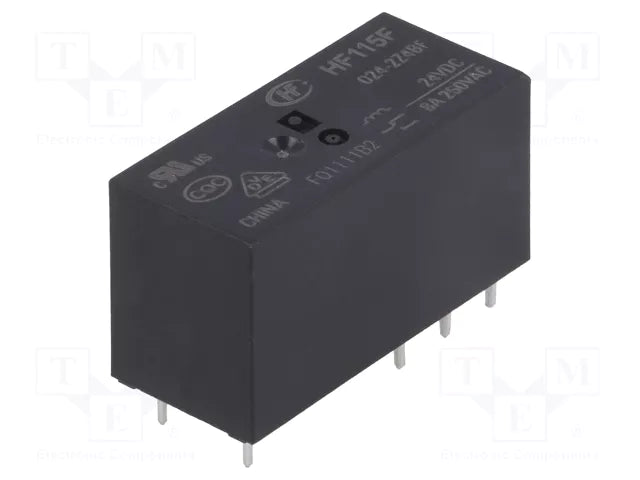

MODEL- MINIATURE HIGH POWER RELAY HF115/024-2ZS4BF 24VDC 8A

Description

Specification

Manufacturer
 HONGFA RELAY
Type of relay
 electromagnetic
Contacts configuration
DPDT
Rated coil voltage
 24V DC
Contact current max.
 8A
AC contacts rating @R(at resistive load)
8A / 250V AC
DC contacts rating @R(at resistive load)
8A / 24V DC
Manufacturer series
 HF115F
Switched voltage
 max. 300V DC, max. 440V AC
Relay variant
 miniature
Mounting
 PCB
Coil resistance
 1.44kΩ
Coil voltage min.
 16.8V DC
Coil voltage max.
 36V DC
Operate time
 15ms
Body dimensions
 29x12.7x15.7mm
Release time
 8ms
Coil power consumption
 400mW
Contact resistance
 100mΩ
Contact material
 AgNi
Terminal pitch
 5mm
Operating temperature
 -40...85°C

MODEL- MINIATURE HIGH POWER RELAY HF115/024-2ZS4BF 24VDC 8A

Product form

Specification Show similar products (12,108) Manufacturer HONGFA RELAY Type of relay electromagnetic Contacts configuration DPDT Rated coil voltage 24V DC... Read more

Rs. 208.00 Excl. VAT

    Description

    Specification

    Manufacturer
    		 HONGFA RELAY
    Type of relay
    		 electromagnetic
    Contacts configuration
    		DPDT
    Rated coil voltage
    		 24V DC
    Contact current max.
    		 8A
    AC contacts rating @R(at resistive load)
    		8A / 250V AC
    DC contacts rating @R(at resistive load)
    		8A / 24V DC
    Manufacturer series
    		 HF115F
    Switched voltage
    		 max. 300V DC, max. 440V AC
    Relay variant
    		 miniature
    Mounting
    		 PCB
    Coil resistance
    		 1.44kΩ
    Coil voltage min.
    		 16.8V DC
    Coil voltage max.
    		 36V DC
    Operate time
    		 15ms
    Body dimensions
    		 29x12.7x15.7mm
    Release time
    		 8ms
    Coil power consumption
    		 400mW
    Contact resistance
    		 100mΩ
    Contact material
    		 AgNi
    Terminal pitch
    		 5mm
    Operating temperature
    		 -40...85°C
