Main function
Motor Protection Circuit Breaker (MPCB)
Product series / family name
WS-V series
Sub-range name

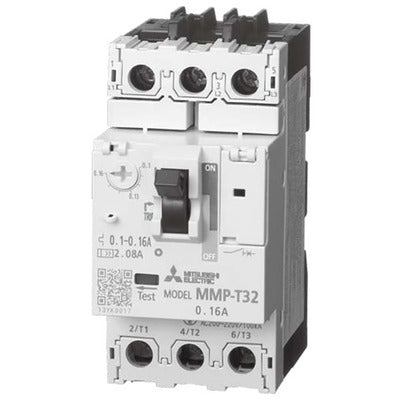

MMP-T Motor Circuit Breakers
Functions
Thermal-Magnetic Motor Protection Circuit Breaker (MPCB) / Manual Mot. Protector Starter
Trip current rating
0.63 AT
Frame current rating
32 AF
Rated operating voltage (Ue)
200-690 V
Rated impulse voltage (Uimp)
6 kV
Rated insulation voltage (Ui)
690 V
Connection type
Screw-clamp
Ultimate short circuit current breaking capacity (Icu)
100kA (200Vac; IEC60947)
100kA (240Vac; IEC60947)
100kA (400Vac; IEC60947)
100kA (415Vac; IEC60947)
100kA (440Vac; IEC60947)
100kA (460Vac; IEC60947)
100kA (500Vac; IEC60947)
100kA (600Vac; IEC60947)
100kA (690Vac; IEC60947)
Service short circuit current breaking capacity (Ics)
100kA (200Vac)
100kA (240Vac)
100kA (400Vac)
100kA (415Vac)
100kA (440Vac)
100kA (460Vac)
100kA (500Vac)
100kA (600Vac)
100kA (690Vac)
Service short circuit current breaking capacity as a percentage of Icu (Ics%)
(400Vac) 100 %
Trip unit type
Thermal-Magnetic (adjustable)
Protection functions
Thermal protection (Overload)
Magnetic protection (Short-circuit)
Protection settings
Thermal protection (Overload) -- adjustable tripping threshold 0.4A...0.63A
Mounting mode
Surface mounting (or DIN rail with optional adapter)
Electrical durability (with load)
100000 operations
Mechanical durability (at no load)
100000 operations
Utilisation category
AC-3
Manufacturer product status
Commercialized
Equivalent to
MMPT32LF063A
Compliant with standard(s)
IEC 60947-2
IEC 60947-4-1
EN 60947-2
EN 60947-4-1
GB14048.2
JIS C8201-2-1 Ann.1
JIS 8201-4-1
