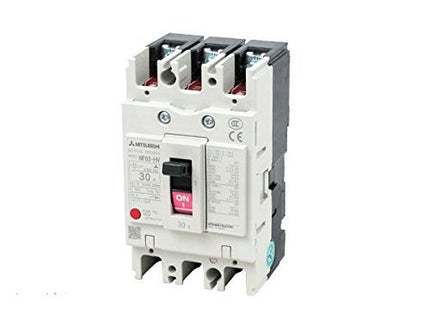

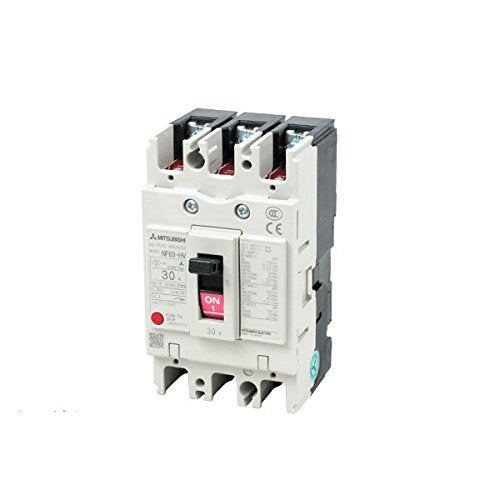

Name: MODEL- NF63-HV 3P 10A ORIGIN JAPAN
Brand: Industry Baba
Price: 1935.2 INR
Availability: InStock

MODEL- NF63-HV 3P 10A ORIGIN JAPAN

Description

Series	WS-V SERIES - MCCB
Type	NF-H TYPE (HIGH-PERFORMANCE)
Frame Size	63
Rated Current (A)	10
Current Type	AC/DC
Number of Poles	3
Rated Voltage (V)	690
Breaking Capacity at 400V (kA)	10/8
Compliant with Standard(s)	EN 60947-2, IEC 60947-2
Cycles with Rated Current	8000
Cycles without Rated Current	15000
Automatic Tripping Device	THERMAL-MAGNETIC

Product form

FA-MCCB: Moulded-Case Circuit Breaker Series WS-V SERIES - MCCB Type NF-H TYPE (HIGH-PERFORMANCE) Frame Size 63 Rated Current (A) 10... Read more

Rs. 1,935.20 Excl. VAT

Series	WS-V SERIES - MCCB
Type	NF-H TYPE (HIGH-PERFORMANCE)
Frame Size	63
Rated Current (A)	10
Current Type	AC/DC
Number of Poles	3
Rated Voltage (V)	690
Breaking Capacity at 400V (kA)	10/8
Compliant with Standard(s)	EN 60947-2, IEC 60947-2
Cycles with Rated Current	8000
Cycles without Rated Current	15000
Automatic Tripping Device	THERMAL-MAGNETIC
