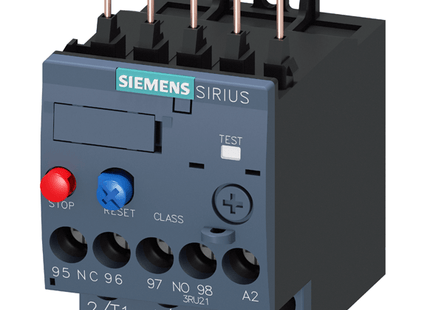

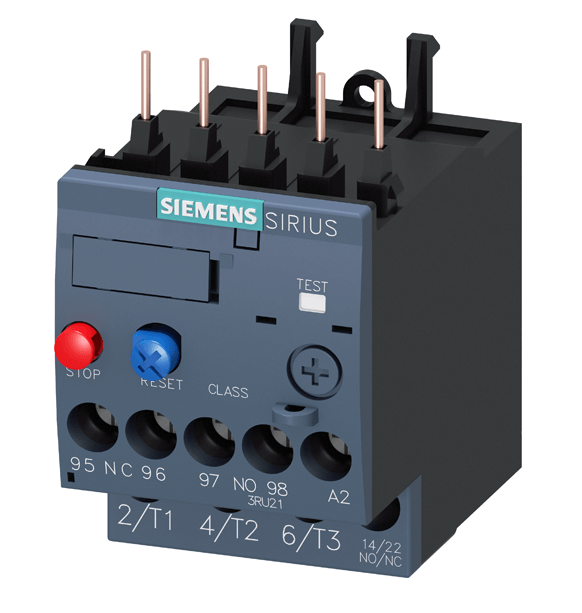

| General Technical Data |
| Size Of Overload Relay |
S00 |
| Size Of Contactor Can Be Combined Company-Specific |
S00 |
| Power Loss [W] For Rated Value Of The Current At AC In Hot Operating State |
4.8 W |
| Per Pole |
1.6 W |
| Insulation Voltage With Degree Of Pollution 3 At AC Rated Value |
690 V |
| Surge Voltage Resistance Rated Value |
6 kV |
| Maximum Permissible Voltage For Protective Separation |
| In Networks With Ungrounded Star Point Between Auxiliary And Auxiliary Circuit |
440 V |
| In Networks With Grounded Star Point Between Auxiliary And Auxiliary Circuit |
440 V |
| In Networks With Ungrounded Star Point Between Main And Auxiliary Circuit |
440 V |
| In Networks With Grounded Star Point Between Main And Auxiliary Circuit |
440 V |
| Shock Resistance According To IEC 60068-2-27 |
8g / 11 Ms |
| Reference Code According To IEC 81346-2 |
F |
| Substance Prohibitance (Date) |
10/01/2009 |
| Svhc Substance Name |
Lead - 7439-92-1 |
| Weight |
0.154 kg |
| Ambient Conditions |
| Installation Altitude At Height Above Sea Level Maximum |
2 000 m |
| Ambient Temperature |
| During Operation |
-40 ... +70 °C |
| During Storage |
-55 ... +80 °C |
| During Transport |
-55 ... +80 °C |
| Temperature Compensation |
-40 ... +60 °C |
| Relative Humidity During Operation |
10 ... 95 % |
| Environmental Footprint |
| Global Warming Potential [CO2 Eq] Total |
39.9 kg |
| Global Warming Potential [CO2 Eq] During Manufacturing |
0.921 kg |
| Global Warming Potential [CO2 Eq] During Sales |
0.039 kg |
| Global Warming Potential [CO2 Eq] During Operation |
39 kg |
| Global Warming Potential [CO2 Eq] After End Of Life |
-0.015 kg |
| Main Circuit |
| Number Of Poles For Main Current Circuit |
3 |
| Adjustable Current Response Value Current Of The Current |
0.7 ... 0.1 A
|
| Dependent Overload Release |
| Operating Voltage |
| Rated Value |
690 V |
| At AC-3e Rated Value Maximum |
690 V |
| Operating Frequency Rated Value |
50 ... 60 Hz |
| Operational Current Rated Value |
0.1 A |
| Operational Current At AC-3e At 400 V Rated Value |
0.1 A |
| Operating Power |
| At AC-3 |
| At 400 V Rated Value |
0.25 kW |
| At 500 V Rated Value |
0.37 kW |
| At 690 V Rated Value |
0.55 kW |
| At AC-3e |
| At 400 V Rated Value |
0.25 kW |
| At 500 V Rated Value |
0.37 kW |
| At 690 V Rated Value |
0.55 kW |
| Auxiliary Circuit |
| Design Of The Auxiliary Switch |
Integrated |
| Number Of NC Contacts For Auxiliary Contacts |
1 |
| Note |
For Contactor Disconnection |
| Number Of No Contacts For Auxiliary Contacts |
1 |
| Note |
For Message "Tripped" |
| Number Of Co Contacts For Auxiliary Contacts |
0 |
| Operational Current Of Auxiliary Contacts At AC-15 |
| at 24 V |
3 A |
| at 110 V |
3 A |
| at 120 V |
3 A |
| at 125 V |
3 A |
| at 230 V |
2 A |
| at 400 V |
1 A |
| at 690 V |
0.75 A |
| Operational Current Of Auxiliary Contacts At DC-13 |
| at 24 V |
2 A |
| at 60 V |
0.3 A |
| at 110 V |
0.22 A |
| at 125 V |
0.22 A |
| at 220 V |
0.11 A |
| Contact Rating Of Auxiliary Contacts According To UL |
B600 / R300 |
| Protective And Monitoring Functions |
| Trip Class |
Class 10 |
| Design Of The Overload Release |
Thermal |
| Ul/Csa Ratings |
| Full-Load Current (Fla) For 3-Phase Ac Motor |
| at 480 V Rated Value |
1 A |
| at 600 V Rated Value |
1 A |
| Short-Circuit Protection |
| Design Of The Fuse Link |
| For Short-Circuit Protection Of The Auxiliary Switch Required |
Fuse gG: 6 A, Quick: 10 A |
| Installation/ Mounting/ Dimensions |
| Fastening Method |
Contactor Mounting |
| Height |
76 mm |
| Width |
45 mm |
| Depth |
70 mm |
| Connections/ Terminals |
| Product Component Removable Terminal For Auxiliary And Control Circuit |
No |
| Type Of Electrical Connection |
| For Main Current Circuit |
Screw-Type Terminals |
| For Auxiliary And Control Circuit |
Screw-Type Terminals |
| Arrangement Of Electrical Connectors For Main Current Circuit |
Top And Bottom |
| Type Of Connectable Conductor Cross-Sections |
| For Main Contacts |
| Solid Or Stranded |
2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm² |
| Finely Stranded With Core End Processing |
2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| For AWG Cables For Main Contacts |
2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| Type Of Connectable Conductor Cross-Sections |
| For Auxiliary Contacts |
| Solid Or Stranded |
2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Finely Stranded With Core End Processing |
2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| For AWG Cables For Auxiliary Contacts |
2x (20 ... 16), 2x (18 ... 14) |
| Tightening Torque |
| For Main Contacts With Screw-Type Terminals |
0.8 ... 1.2 N·m |
| For Auxiliary Contacts With Screw-Type Terminals |
0.8 ... 1.2 N·m |
| Design Of Screwdriver Shaft |
Diameter 5 ... 6 mm |
| Size Of The Screwdriver Tip |
Pozidriv PZ 2 |
| Design Of The Thread Of The Connection Screw |
| For Main Contacts |
M3 |
| Of The Auxiliary And Control Contacts |
M3 |
| Safety Related Data |
| Failure Rate [FIT] With Low Demand Rate According To Sn 31920 |
50 FIT |
| Mttf With High Demand Rate |
2 280 a |
| IEC 61508 |
| T1 Value |
| For Roof Test Interval Or Service Life According To IEC 61508 |
20 a |
| Electrical Safety |
| Protection Class IP On The Front According To IEC 60529 |
IP20 |
| Touch Protection On The Front According To IEC 60529 |
Finger-Safe, For Vertical Contact From The Front |
| Display |
| Display Version For Switching Status |
Slide Switch |
