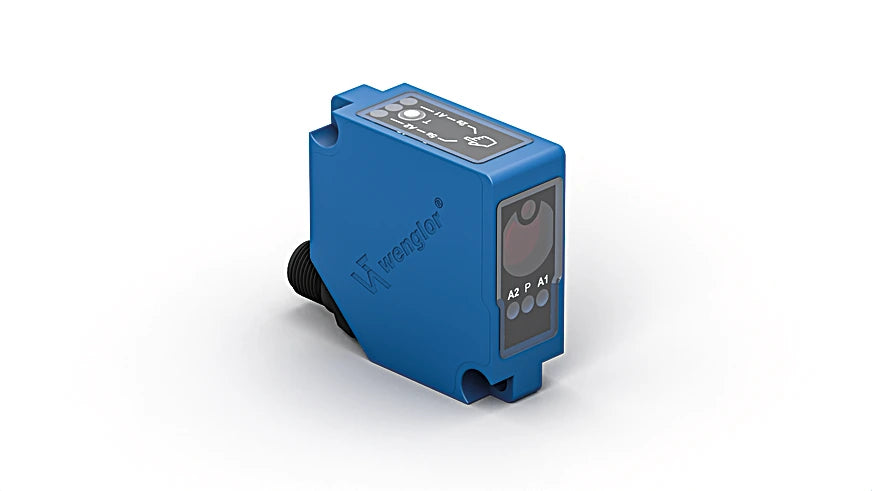

MODEL- P1PY001

Description

Optical Data

Working Range 0 ... 3,000 mm
Setting Range 200 ... 3,000 mm
Switching Hysteresis  < 15 mm
Light Source Laser (red)
Wavelength 660 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 1
Beam Divergence < 2 mrad
Max. Ambient Light 10,000 Lux
Light Spot Diameter see Table 1
Reflector required no





Electrical Data

Supply Voltage 10 ... 30 V DC
Supply Voltage with IO-Link 18 ... 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift (-10 °C < Tu < 50 °C) < 1 %
Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 2.5 %
Temperature Range -40 ... 60 °C
Number of Switching Outputs 2
Switching Output Voltage Drop < 2.5 V
Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Interface IO-Link V1.1
Protection Class III
FDA Accession Number 1910001-001

Mechanical Data

Setting Method Teach-In
Housing Material Plastic, ABS
Plastic, PC
Optic Cover Plastic, PMMA
Degree of Protection IP68
Connection M12 × 1; 5-pin
Weight 37 g

Safety-relevant Data

MTTFd (EN ISO 13849-1) 949.92 a

General Data

Scope of delivery 1 × BEF-SET-44 mounting set
1 × initial start-up instructions
1 × sensor





Output

PNP NO yes
IO-Link yes

Adjustable parameters

Output PNP
NPN
Circuit NO
NC
Other parameters Off-delay
On-delay
Emitted light

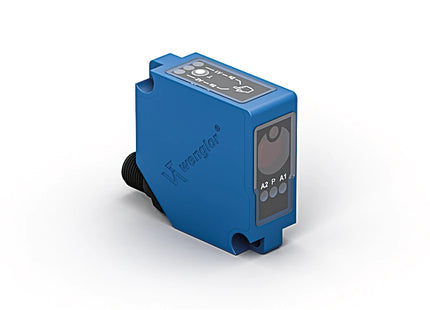

MODEL- P1PY001

Product form

Optical Data Working Range 0 ... 3,000 mm Setting Range 200 ... 3,000 mm Switching Hysteresis  < 15 mm Light Source Laser (red) Wavelength 660 nm Service Life (T =... Read more

Rs. 27,140.00 Excl. VAT

  • Shipped today? Order within: Jul 06, 2026 17:00:00 -0400

    Description

    Optical Data

    Working Range 0 ... 3,000 mm
    Setting Range 200 ... 3,000 mm
    Switching Hysteresis  < 15 mm
    Light Source Laser (red)
    Wavelength 660 nm
    Service Life (T = +25 °C) 100,000 h
    Laser Class (EN 60825-1) 1
    Beam Divergence < 2 mrad
    Max. Ambient Light 10,000 Lux
    Light Spot Diameter see Table 1
    Reflector required no





    Electrical Data

    Supply Voltage 10 ... 30 V DC
    Supply Voltage with IO-Link 18 ... 30 V DC
    Current Consumption (Ub = 24 V) < 40 mA
    Switching Frequency 500 Hz
    Response Time 1 ms
    Temperature Drift (-10 °C < Tu < 50 °C) < 1 %
    Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 2.5 %
    Temperature Range -40 ... 60 °C
    Number of Switching Outputs 2
    Switching Output Voltage Drop < 2.5 V
    Switching Output/Switching Current 200 mA
    Short Circuit Protection yes
    Reverse Polarity Protection yes
    Overload Protection yes
    Interface IO-Link V1.1
    Protection Class III
    FDA Accession Number 1910001-001

    Mechanical Data

    Setting Method Teach-In
    Housing Material Plastic, ABS
    Plastic, PC
    Optic Cover Plastic, PMMA
    Degree of Protection IP68
    Connection M12 × 1; 5-pin
    Weight 37 g

    Safety-relevant Data

    MTTFd (EN ISO 13849-1) 949.92 a

    General Data

    Scope of delivery 1 × BEF-SET-44 mounting set
    1 × initial start-up instructions
    1 × sensor





    Output

    PNP NO yes
    IO-Link yes

    Adjustable parameters

    Output PNP
    NPN
    Circuit NO
    NC
    Other parameters Off-delay
    On-delay
    Emitted light
