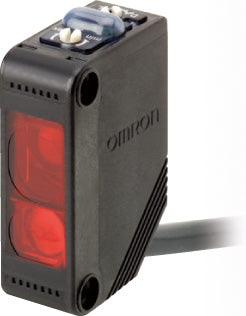

| Shape |
Square type |
| Sensing method |
Distance-setting |
| Sensing distance |
20 to 200 mm |
| Setting range |
White paper 100 x 100 mm: 40 to 200 mm
Black paper 100 x 100 mm: 40 to 160 mm |
| Detection range |
BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm)
FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm) |
| Differential distance |
10% max. of setting distance |
| Reflectivity characteristic (black-white error) |
10% max. of setting distance |
| Light source |
Red LED (670 nm) |
| Power supply voltage |
12 to 24 VDC±10% ripple (p-p) 10% max. |
| Current consumption |
30 mA max. |
| Control output |
NPN open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max. |
| Operation mode |
Light-ON/Dark-ON selectable |
| Protective circuit |
Output short-circuit protection, Power supply reverse polarity protection |
| Response time |
Operate or reset: 1 ms max. |
| Sensitivity setting |
5-turn endless adjustment |
| Ambient illuminance |
Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max. |
| Ambient temperature range (Operating) |
-25 to 55 ℃ (with no freezing or condensation) |
| Ambient temperature range (Storage) |
-40 to 70 ℃ (with no freezing or condensation) |
| Ambient humidity range (Operating) |
35 to 85 % (with no condensation) |
| Ambient humidity range (Strage) |
35 to 95 % (with no condensation) |
| Insulation resistance |
20 MΩ min. (500 VDC megger) |
| Dielectric strength |
1000 VAC 50/60 Hz 1 min |
| Vibration resistance |
Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance |
Destruction: 500 m/s2 3 times each in X, Y and Z directions |
| Degree of protection |
IEC: IP67 |
| Connection method |
Pre-wired models (Cable length 2 m) |
| Indicator |
Operation indicator (orange), Stability indicator (green) |
| Weight |
Package: Approx. 65 g |
| Accessories |
Instruction manual |
| Material |
Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate |
