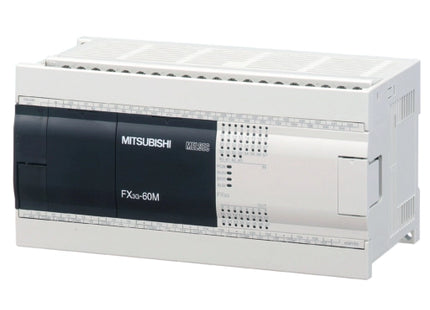

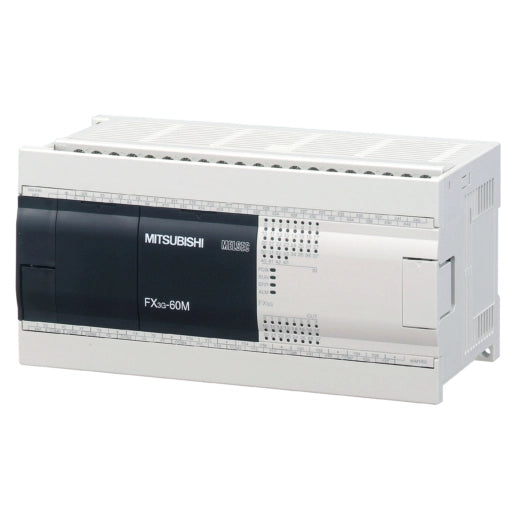

Name: MODEL-PLC CPU-FX3G-60MR/ES-60 I/O-36 I/P-DIGITAL INPUT-24 O/P-DIGITAL OUTPUT-230VAC
Brand: Industry Baba
Price: 26000.0 INR
Availability: InStock

MODEL-PLC CPU-FX3G-60MR/ES-60 I/O-36 I/P-DIGITAL INPUT-24 O/P-DIGITAL OUTPUT-230VAC

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

FA-COM PLC: Main Unit

Type	FX3G
Power Supply (V)	100-240
Current Type	AC
Program Memory	32K STEPS
Program Memory Unit	EEPROM
Integrated Digital Inputs	36
Integrated Digital Outputs	24
Output Type	RELAY
Local I/O Points	128
Local + Remote I/O Points	256
Expandable	YES
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	40
Buffer Battery	OPTION
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC-F SERIES

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	NON-COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA	COMPLIANT

Product Dimensions & Weight

Width (mm)	175
Height (mm)	90
Depth (mm)	86
Weight (kg)	0,85

MODEL-PLC CPU-FX3G-60MR/ES-60 I/O-36 I/P-DIGITAL INPUT-24 O/P-DIGITAL OUTPUT-230VAC

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

FA-COM PLC: Main Unit Type FX3G Power Supply (V) 100-240 Current Type AC Program Memory 32K STEPS Program Memory Unit... Read more

Rs. 26,000.00 Excl. VAT

Description

FA-COM PLC: Main Unit

Type	FX3G
Power Supply (V)	100-240
Current Type	AC
Program Memory	32K STEPS
Program Memory Unit	EEPROM
Integrated Digital Inputs	36
Integrated Digital Outputs	24
Output Type	RELAY
Local I/O Points	128
Local + Remote I/O Points	256
Expandable	YES
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	40
Buffer Battery	OPTION
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC-F SERIES

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	NON-COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA	COMPLIANT

Product Dimensions & Weight

Width (mm)	175
Height (mm)	90
Depth (mm)	86
Weight (kg)	0,85
