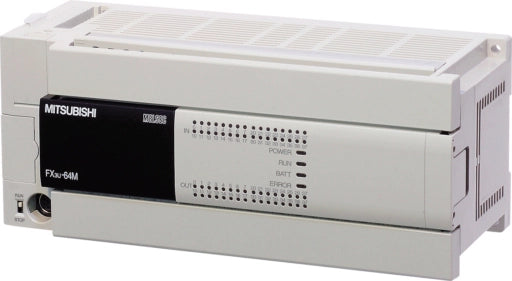

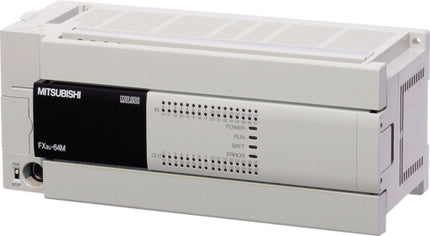

MODEL-(PLC CPU-FX3U-64MR/ES-64 I/O-32 I/P-DIGITAL INPUT-32 O/P) MAKE MITSUBISHI

Description

FA-COM PLC: Main Unit

Type FX3U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit RAM
Integrated Digital Inputs 32
Integrated Digital Outputs 32
Output Type RELAY
Local I/O Points 256
Local + Remote I/O Points 384
Expandable YES
Cycle Time LD (ns) 65
Cycle Time MOV (ns) 642
USB OPTION
RS-422 1
Power Consumption (W) 45
Buffer Battery YES
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 220
Height (mm) 90
Depth (mm) 86
Weight (kg) 1

MODEL-(PLC CPU-FX3U-64MR/ES-64 I/O-32 I/P-DIGITAL INPUT-32 O/P) MAKE MITSUBISHI

Product form

FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit... Read more

Rs. 31,000.00 Excl. VAT

    Description

    FA-COM PLC: Main Unit

    Type FX3U
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 64K STEPS
    Program Memory Unit RAM
    Integrated Digital Inputs 32
    Integrated Digital Outputs 32
    Output Type RELAY
    Local I/O Points 256
    Local + Remote I/O Points 384
    Expandable YES
    Cycle Time LD (ns) 65
    Cycle Time MOV (ns) 642
    USB OPTION
    RS-422 1
    Power Consumption (W) 45
    Buffer Battery YES
    Protection Class IP10
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    Series MELSEC-F SERIES

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC NON-COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 220
    Height (mm) 90
    Depth (mm) 86
    Weight (kg) 1
