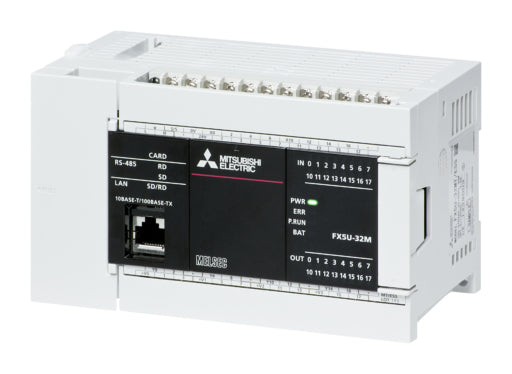

MODEL- PLC FX5U 32MT/ESS

Description

FA-COM PLC: Main Unit

Type FX5U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit FLASH
Integrated Digital Inputs 16
Integrated Digital Outputs 16
Integrated Analogue Inputs 2
Output Type TRANSISTOR
Output Logic SOURCE
Local I/O Points 256
Local + Remote I/O Points 512
Expandable YES
Cycle Time LD (ns) 34
Cycle Time MOV (ns) 34
Ethernet Port 1
RS-485 1
Power Consumption (W) 30
Buffer Battery OPTION
Protection Class IP10
Min. Ambient Temperature (°C) -20
Max. Ambient Temperature (°C) 55
Series MELSEC IQ-F SERIES

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 150
Height (mm) 90
Depth (mm) 83
Weight (kg) 0,65

Life Cycle

Predecessor 231493
Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 117
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 0
Wood (g) 0
Glass (g) 0
Others (g) 0

MODEL- PLC FX5U 32MT/ESS

Product form

FA-COM PLC: Main Unit Type FX5U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit... Read more

Rs. 20,257.00 Excl. VAT

  • Shipped today? Order within: Jul 10, 2026 17:00:00 -0400

    Description

    FA-COM PLC: Main Unit

    Type FX5U
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 64K STEPS
    Program Memory Unit FLASH
    Integrated Digital Inputs 16
    Integrated Digital Outputs 16
    Integrated Analogue Inputs 2
    Output Type TRANSISTOR
    Output Logic SOURCE
    Local I/O Points 256
    Local + Remote I/O Points 512
    Expandable YES
    Cycle Time LD (ns) 34
    Cycle Time MOV (ns) 34
    Ethernet Port 1
    RS-485 1
    Power Consumption (W) 30
    Buffer Battery OPTION
    Protection Class IP10
    Min. Ambient Temperature (°C) -20
    Max. Ambient Temperature (°C) 55
    Series MELSEC IQ-F SERIES

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC NON-COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 150
    Height (mm) 90
    Depth (mm) 83
    Weight (kg) 0,65

    Life Cycle

    Predecessor 231493
    Serial No. on the Box QR1

    Campaigns

    Selling Status Standard

    Product Packaging

    Cardboard (g) 117
    Other paper (g) 0
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
