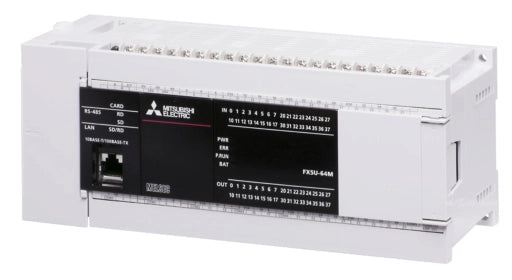

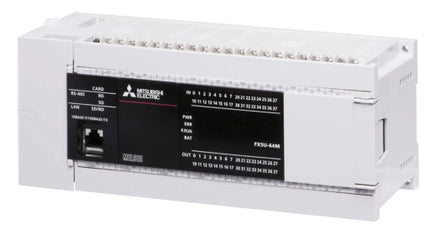

Model-PLC-FX5U-64MR

Description

FA-COM PLC: Main Unit

Type FX5U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit FLASH
Integrated Digital Inputs 32
Integrated Digital Outputs 32
Integrated Analogue Inputs 2
Output Type RELAY
Local I/O Points 256
Local + Remote I/O Points 512
Expandable YES
Cycle Time LD (ns) 34
Cycle Time MOV (ns) 34
Ethernet Port 1
RS-485 1
Power Consumption (W) 40
Buffer Battery OPTION
Protection Class IP10
Min. Ambient Temperature (°C) -20
Max. Ambient Temperature (°C) 55
Series MELSEC IQ-F SERIES

Product Dimensions & Weight

Width (mm) 220
Height (mm) 90
Depth (mm) 83
Weight (kg) 1

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA COMPLIANT

Model-PLC-FX5U-64MR

Product form

FA-COM PLC: Main Unit Type FX5U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit... Read more

Rs. 36,580.00 Excl. VAT

    Description

    FA-COM PLC: Main Unit

    Type FX5U
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 64K STEPS
    Program Memory Unit FLASH
    Integrated Digital Inputs 32
    Integrated Digital Outputs 32
    Integrated Analogue Inputs 2
    Output Type RELAY
    Local I/O Points 256
    Local + Remote I/O Points 512
    Expandable YES
    Cycle Time LD (ns) 34
    Cycle Time MOV (ns) 34
    Ethernet Port 1
    RS-485 1
    Power Consumption (W) 40
    Buffer Battery OPTION
    Protection Class IP10
    Min. Ambient Temperature (°C) -20
    Max. Ambient Temperature (°C) 55
    Series MELSEC IQ-F SERIES

    Product Dimensions & Weight

    Width (mm) 220
    Height (mm) 90
    Depth (mm) 83
    Weight (kg) 1

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC NON-COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    UKCA COMPLIANT
