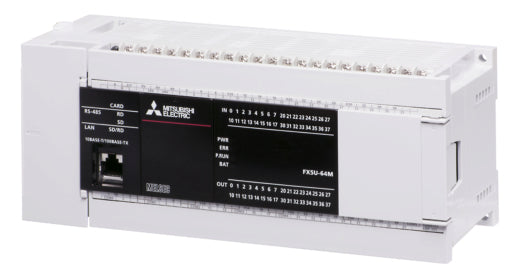

MODEL- PLC FX5U-64MT/ESS

Description

FA-COM PLC: Main Unit

Type FX5U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit FLASH
Integrated Digital Inputs 32
Integrated Digital Outputs 32
Integrated Analogue Inputs 2
Output Type TRANSISTOR
Output Logic SOURCE
Local I/O Points 256
Local + Remote I/O Points 512
Expandable YES
Cycle Time LD (ns) 34
Cycle Time MOV (ns) 34
Ethernet Port 1
RS-485 1
Power Consumption (W) 40
Buffer Battery OPTION
Protection Class IP10
Min. Ambient Temperature (°C) -20
Max. Ambient Temperature (°C) 55
Series MELSEC IQ-F SERIES

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 220
Height (mm) 90
Depth (mm) 83
Weight (kg) 1

Life Cycle

Predecessor 231495
Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 210
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 1
Wood (g) 0
Glass (g) 0
Others (g) 0

MODEL- PLC FX5U-64MT/ESS

Product form

FA-COM PLC: Main Unit Type FX5U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit... Read more

Rs. 36,244.80 Excl. VAT

  • Shipped today? Order within: Oct 17, 2026 17:00:00 -0400

    Description

    FA-COM PLC: Main Unit

    Type FX5U
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 64K STEPS
    Program Memory Unit FLASH
    Integrated Digital Inputs 32
    Integrated Digital Outputs 32
    Integrated Analogue Inputs 2
    Output Type TRANSISTOR
    Output Logic SOURCE
    Local I/O Points 256
    Local + Remote I/O Points 512
    Expandable YES
    Cycle Time LD (ns) 34
    Cycle Time MOV (ns) 34
    Ethernet Port 1
    RS-485 1
    Power Consumption (W) 40
    Buffer Battery OPTION
    Protection Class IP10
    Min. Ambient Temperature (°C) -20
    Max. Ambient Temperature (°C) 55
    Series MELSEC IQ-F SERIES

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC NON-COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 220
    Height (mm) 90
    Depth (mm) 83
    Weight (kg) 1

    Life Cycle

    Predecessor 231495
    Serial No. on the Box QR1

    Campaigns

    Selling Status Standard

    Product Packaging

    Cardboard (g) 210
    Other paper (g) 0
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 1
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
