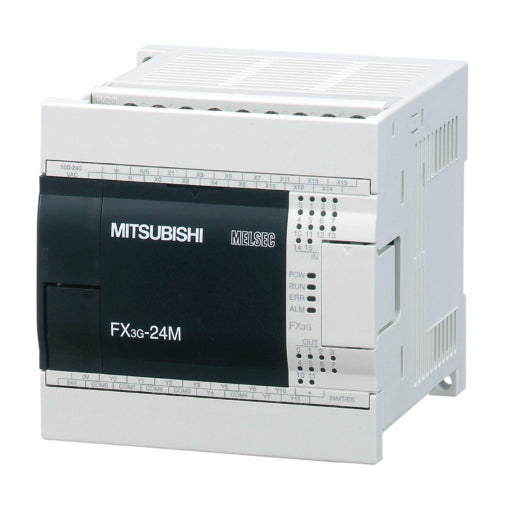

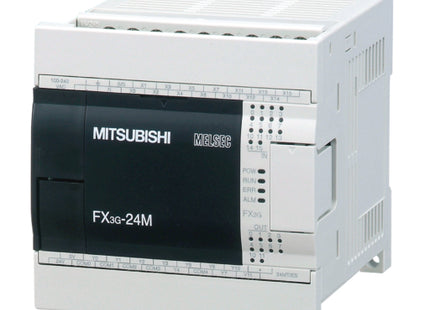

MODEL - PLC MODULE FX3GE24MT/ESS 813-CONS-4082 MAKE MITSUBISHI

Description

FA-COM PLC: Main Unit

Type FX3G
Power Supply (V) 100-240
Current Type AC
Program Memory 32K STEPS
Program Memory Unit EEPROM
Integrated Digital Inputs 14
Integrated Digital Outputs 10
Output Type TRANSISTOR
Output Logic SOURCE
Local I/O Points 128
Local + Remote I/O Points 256
Expandable YES
Cycle Time LD (ns) 210
Cycle Time MOV (ns) 500
USB 1
RS-422 1
Power Consumption (W) 32
Buffer Battery OPTION
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 90
Height (mm) 90
Depth (mm) 86
Weight (kg) 0,55

Life Cycle

Discontinued (EOL) 05.07.2024
Last Time Buy (LTB) 29.05.2026
End of Service (EOS) 31.12.2033
Predecessor 221546
Successor 685463
Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 84
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 0
Wood (g) 0
Glass (g) 0
Others (g) 0

MODEL - PLC MODULE FX3GE24MT/ESS 813-CONS-4082 MAKE MITSUBISHI

Product form

FA-COM PLC: Main Unit Type FX3G Power Supply (V) 100-240 Current Type AC Program Memory 32K STEPS Program Memory Unit... Read more

Rs. 21,000.00 Excl. VAT
