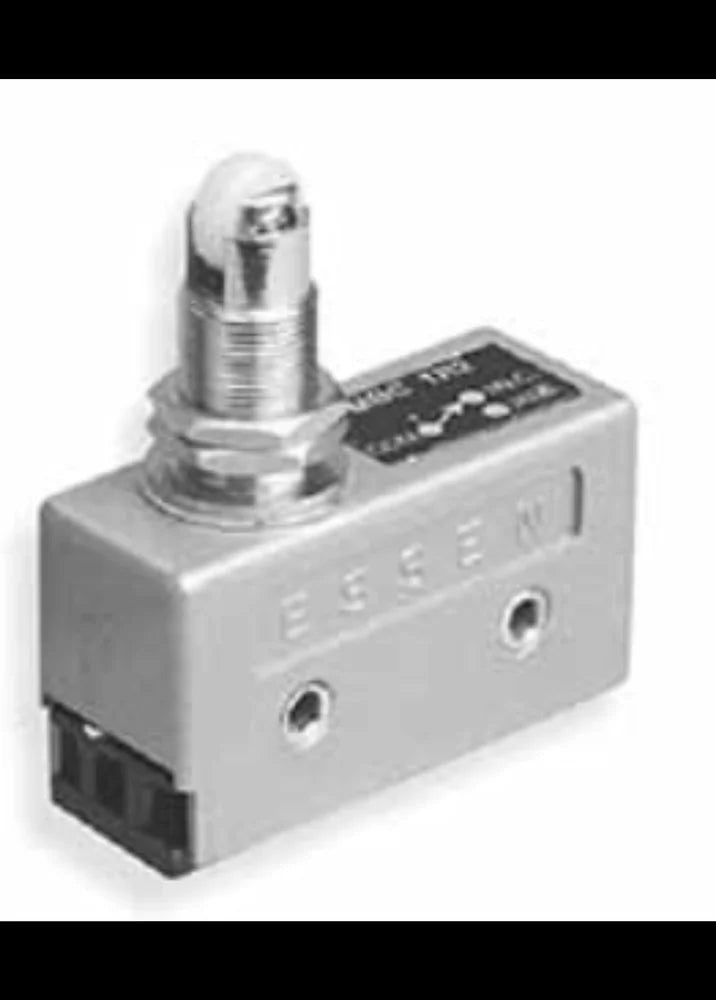

MODEL-PLUNGER ESSEN MICRO SWITCH

Description

Micro Switch Type
Plunger
Brand
Essen
Switch Function
COMON, NO/NC TERMINALS
Current Rating
15 AMP
Rated Current
15 AMP
Usage/Application
Lifts & Escalators, Control System, Appliance, Machine
Model Name/Number
MBC1 R2
Material/Body
Metal
Mounting
WITH 2 SCREWS
Availability
In Stock
Actuating force - 283 gms(max)
Release force - 113 gms(max)
Pretravel - 0.8 mm(max)
Overtravel - 3.56 mm
Movement differential - 0.05 mm(max)
Salient Features - Nylon roller plunger with single hole mounting.

MODEL-PLUNGER ESSEN MICRO SWITCH

Product form

Micro Switch Type Plunger Brand Essen Switch Function COMON, NO/NC TERMINALS Current Rating 15 AMP Rated Current 15 AMP Usage/Application... Read more

Rs. 495.60 Excl. VAT

  • Shipped today? Order within: Oct 16, 2026 17:00:00 -0400

    Description

    Micro Switch Type
    Plunger
    Brand
    Essen
    Switch Function
    COMON, NO/NC TERMINALS
    Current Rating
    15 AMP
    Rated Current
    15 AMP
    Usage/Application
    Lifts & Escalators, Control System, Appliance, Machine
    Model Name/Number
    MBC1 R2
    Material/Body
    Metal
    Mounting
    WITH 2 SCREWS
    Availability
    In Stock
    Actuating force - 283 gms(max)
    Release force - 113 gms(max)
    Pretravel - 0.8 mm(max)
    Overtravel - 3.56 mm
    Movement differential - 0.05 mm(max)
    Salient Features - Nylon roller plunger with single hole mounting.
