Input Voltage (V DC)
|
250-370V DC
|
Load Regulation
|
± 0.1%
|
Ripple and Noise
|
120 mV p-p
|
Input Frequency
|
47-63 Hz
|
Features
|
AC input range selectable by switch, Built-in passive PFC function compliance to EN61000-3-2, High efficiency 89% and low dissipation.
|
Operating Temperature
|
-20 ~ 70°C
|
Output Voltage (V DC)
|
24V DC
|
Mounting Type
|
DIN Rail
|
Storage Temperature
|
-40 ~ 85°C
|
Type of Product
|
Switching Power Supply
|
Output Current (Amps)
|
20 A
|
Model No
|

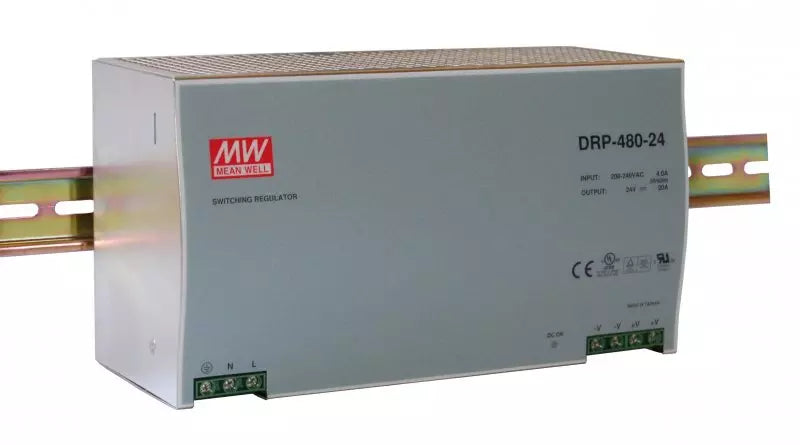

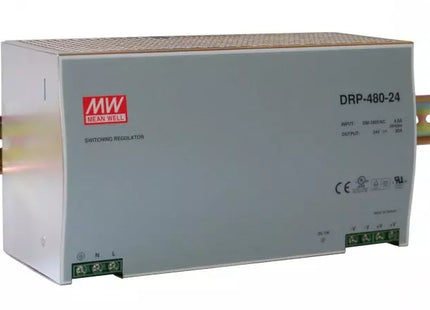

DRP-480-24
|
Operating Humidity
|
20 ~ 90% RH
|
Input Voltage (V AC)
|
180-264V AC
|
Size (mm)
|
227x125x100 mm
|
Line Regulation
|
± 0.5%
|
No. Of Output
|
DRP-480
|
Storage Humidity
|
10 ~ 95% RH
|
Efficiency (%)
|
0.89
|
Country of Origin
|
India
|
Name of Manufacturer/Packer/Importer
|
surya manufacturing company
|
