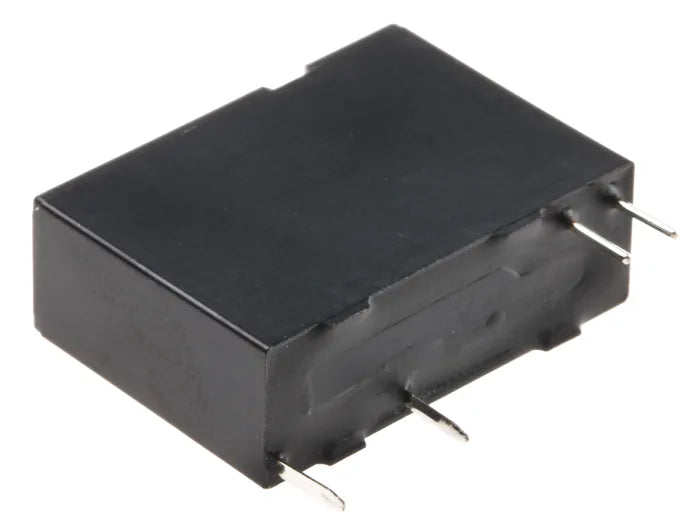

MODEL- POWERRELAY F3A012E 12VDC 5A FUJI

Description

Specifications

Brand

Fujitsu

Coil Voltage

12V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

5A

Number of Poles

1

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

277V ac

Maximum Switching Voltage DC

30V dc

Length

20.3mm

Coil Resistance

720Ω

Coil Power

200mW

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+70°C

Isolation Coil To Contact

10kV

Depth

7mm

Life

100 x 10³ Operations

Height

15mm

Contact Material

Silver Alloy

Maximum Switching Power DC

150 W

Maximum Switching Power AC

1.25 kVA

Application

Power

MODEL- POWERRELAY F3A012E 12VDC 5A FUJI

Product form

Specifications Brand Fujitsu Coil Voltage 12V dc Contact Configuration SPST Mounting Type PCB Mount Switching Current 5A Number of Poles... Read more

Rs. 220.00 Excl. VAT
