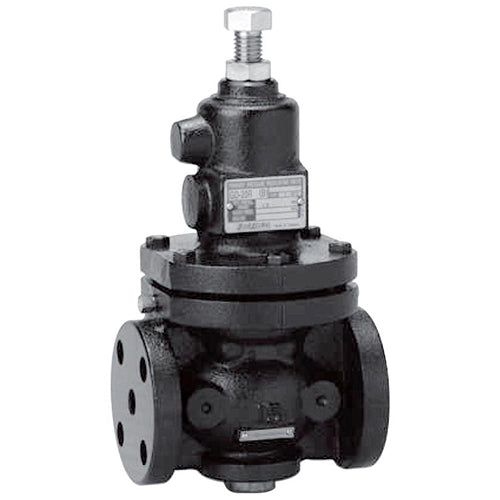

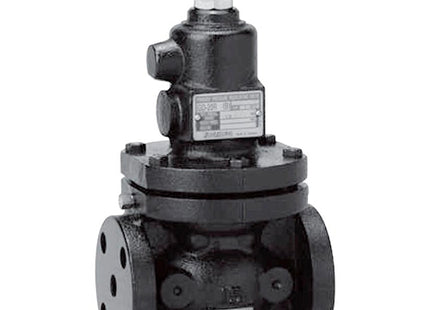

Name: MODEL- PRIM.PRESS. REGULATING VALVE GD-20R-32A
Brand: Industry Baba
Price: 58000.0 INR
Availability: InStock

MODEL- PRIM.PRESS. REGULATING VALVE GD-20R-32A

Product form

Model GD-20R GD-20RC Application Cold and hot water, oil (kerosene A and B), air, other non-hazardous liquids Pressure regulation range... Read more

Rs. 58,000.00 Excl. VAT

Model		GD-20R	GD-20RC
Application		Cold and hot water, oil (kerosene A and B), air, other non-hazardous liquids
Pressure regulation range		15A-80A (A) 0.05-0.25 MPa (B) 0.26-0.7 MPa 100A-150A (A) 0.05-0.25 MPa (B) 0.26-0.5 MPa
Liquid temperature		5-80˚C	5-60˚C
Fluid viscosity		No more than 600 cSt
Material	Frame	Malleable cast iron
	Valve seat	Stainless steel or bronze
	Valve plug	Nitrile butadiene rubber
	Membrane	Nitrile butadiene rubber
Compound		Flange connection JIS 10K FF
Internal processing case surface		Electroplating	Nylon 11 (inner and outer shell)
