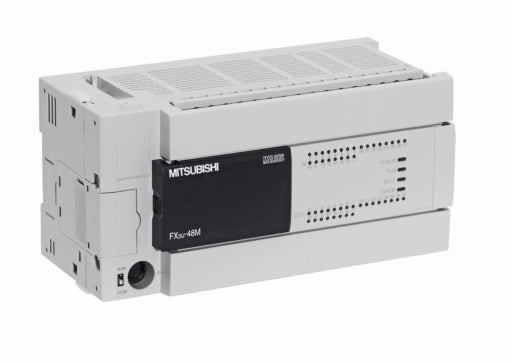

MODEL- PROGRAMMABLE CONTROLLER FX3U-48 MR/ES MAKE- MITSUBISHI FOR I-92

Description

FA-COM PLC: Main Unit

Type FX3U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit RAM
Integrated Digital Inputs 24
Integrated Digital Outputs 24
Output Type RELAY
Local I/O Points 256
Local + Remote I/O Points 384
Expandable YES
Cycle Time LD (ns) 65
Cycle Time MOV (ns) 642
USB OPTION
RS-422 1
Power Consumption (W) 40
Buffer Battery YES
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 182
Height (mm) 90
Depth (mm) 86
Weight (kg) 0,85

Product Packaging

Cardboard (g) 120
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 0
Wood (g) 0
Glass (g) 0
Others (g) 0

MODEL- PROGRAMMABLE CONTROLLER FX3U-48 MR/ES MAKE- MITSUBISHI FOR I-92

Product form

FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit... Read more

Rs. 29,000.00 Excl. VAT

    Description

    FA-COM PLC: Main Unit

    Type FX3U
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 64K STEPS
    Program Memory Unit RAM
    Integrated Digital Inputs 24
    Integrated Digital Outputs 24
    Output Type RELAY
    Local I/O Points 256
    Local + Remote I/O Points 384
    Expandable YES
    Cycle Time LD (ns) 65
    Cycle Time MOV (ns) 642
    USB OPTION
    RS-422 1
    Power Consumption (W) 40
    Buffer Battery YES
    Protection Class IP10
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    Series MELSEC-F SERIES

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC NON-COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 182
    Height (mm) 90
    Depth (mm) 86
    Weight (kg) 0,85

    Product Packaging

    Cardboard (g) 120
    Other paper (g) 0
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
