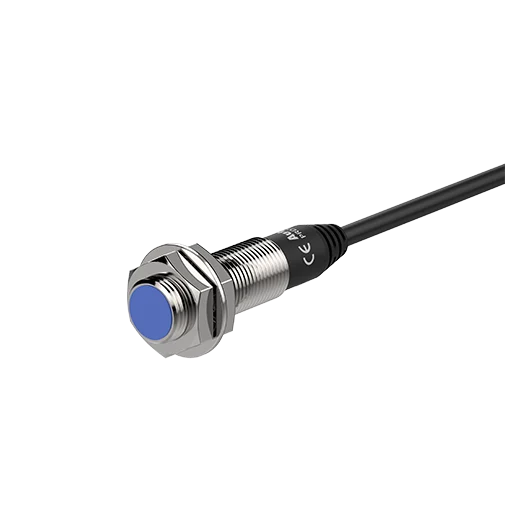

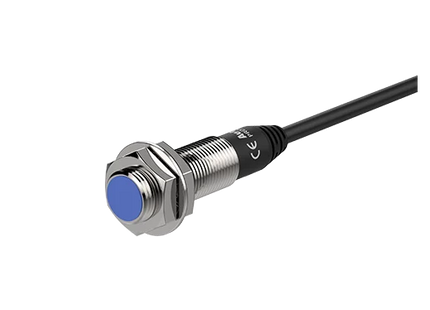

Name: MODEL- PROXIMITY SENSOR PRDW12-4DN-NPNNO 12MM
Brand: Industry Baba
Price: 1500.0 INR
Availability: InStock

MODEL- PROXIMITY SENSOR PRDW12-4DN-NPNNO 12MM

Description

Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M12
Sensing distance	4mm
Installation	Shield(flush)
Standard sensing target	12×12×1mm(iron)
Response frequency	500Hz
Current specification	Current consumption: Max. 10mA
Control output	NPN Normally Open
Material	Brass(nickel plated)
Cable Standard/material	Standard cable
Protection structure	IP67
Body length	Standard type
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 1.5V
Weight	≈ 62g (≈ 74g)

Product form

Sensing Distance 5 mm Usage for Industrial Material Stainless Steel Brand Autonics Sensor Type NPN NO Power supply voltage 12-24... Read more

Rs. 1,500.00 Excl. VAT

Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M12
Sensing distance	4mm
Installation	Shield(flush)
Standard sensing target	12×12×1mm(iron)
Response frequency	500Hz
Current specification	Current consumption: Max. 10mA
Control output	NPN Normally Open
Material	Brass(nickel plated)
Cable Standard/material	Standard cable
Protection structure	IP67
Body length	Standard type
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 1.5V
Weight	≈ 62g (≈ 74g)
