Protection Class
|
IEC Standard IP67
|
Cable Length
|
2 m
|
Type of Product
|
Proximity Sensor
|
Model No
|

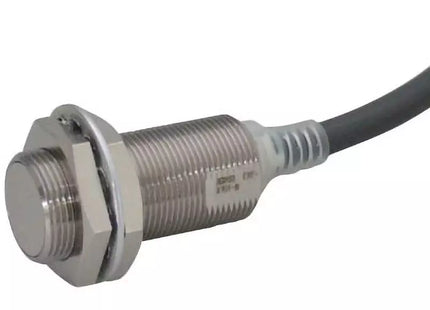

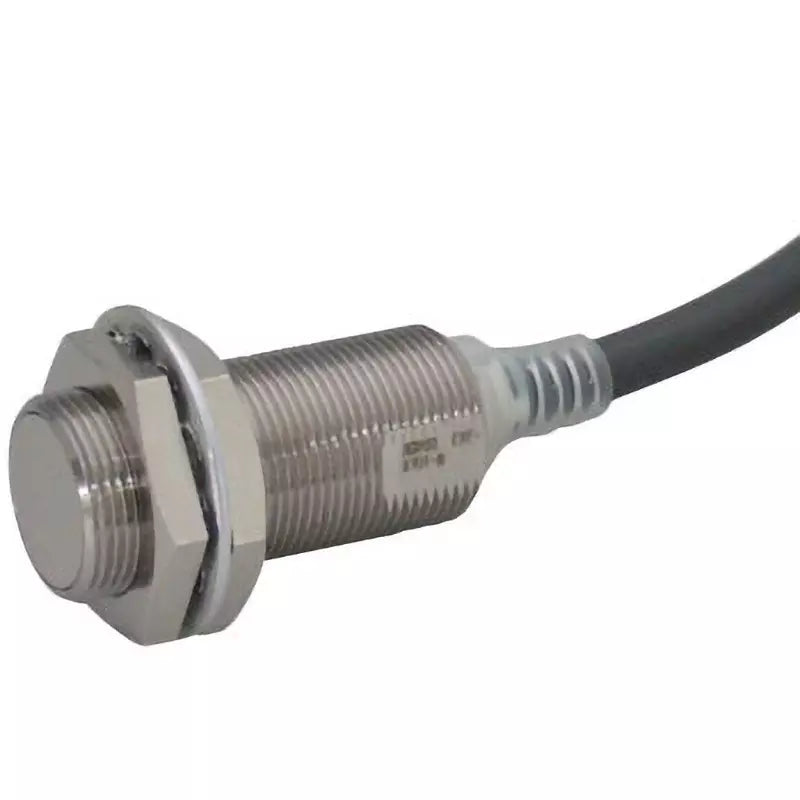

E2E-X7D1-N 2M
|
Weight
|
Approx. 130 g (Packed)
|
Country of Origin
|
Japan
|
Detection Distance
|
7 mm
|
Head Shape
|
Screw
|
Monotaro ID
|
6862107
|
Switching Capacity
|
3 to 100 mA, Diagnostic Output: 50 mA
|
Case Material
|
Brass Nickel Plating
|
Protection Circuit
|
Surge Absorption, Load Short-Circuit Protection (Both Control Output And Diagnostic Output)
|
Ambient Humidity
|
Operating & Storage: 35 to 95% RH (No Icing or Condensation)
|
Included Components
|
Instruction Manual
|
Influence of Voltage
|
Within rated voltage ± 15% range, within rated voltage ± 1% of sensing distance
|
Standard sensing Object
|
Iron: 18 × 18 × 1 mm
|
Connection Type
|
Cord drawer type
|
Insulation Resistance
|
50 MΩ or more (at 500 VDC) between live parts and case
|
Setting Distance (mm)
|
0～5.6 mm
|
Cord
|
Standard PVC Cord (Oil Resistant)
|
Diagnosis Delay Time
|
0.3～1 s
|
Power Supply Voltage
|
DC12 ~ 24 V Ripple (pp) 10% or less
|
Vibration Resistance
|
10-55 Hz, multiple width 1.5 mm, X, Y, Z directions 2h
|
Residual voltage (V)
|
3 V or Less (Load Current 100 mA, Cord Length 2 m, But Only 5 V or Less for M1J-T Type Only)
|
Name of Manufacturer/Packer/Importer
|
Omron Corporation
|
