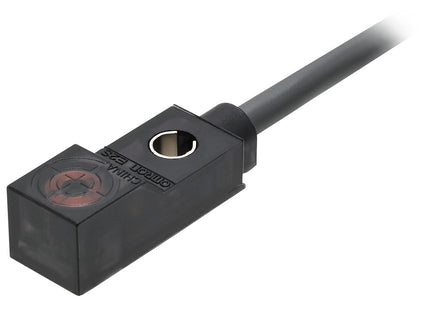

| Sensing head size |
8 mm x 7.4 mm x 20 mm |
| Type |
Square type, Unshielded |
| Power source |
DC Three-wires models |
| Sensing distance |
2.5 mm ±15% |
| Setting distance |
0 to 1.9 mm |
| Differential distance |
10% max. of sensing distance |
| Sensing object |
Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object |
Iron 15 x 15 x 1 mm |
| Response frequency |
1 kHz (Average value) |
| Power supply voltage |
12 to 24 VDC ripple (p-p) 10% max. |
| Operating voltage range |
10 to 30 VDC |
| Current consumption |
at 24 VDC, no load: 13 mA max. |
| Control output (Output type) |
PNP open collector |
| Control output (Switching capacity) |
50 mA max. (30 VDC max.) |
| Indicator |
Operation indicator (orange) |
| Operation mode |
NO |
| Protective circuit |
Power supply reverse polarity protection
Surge suppressor |
| Ambient temperature (Operating) |
-25 to 70 ℃ |
| Ambient temperature (Storage) |
-40 to 85 ℃ |
| Ambient humidity (Operating) |
35 to 90 % |
| Ambient humidity (Storage) |
35 to 95 % |
| Temperature influence |
±15% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃ |
| Voltage influence |
±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range |
| Insulation resistance |
Between charged parts and the case: 50 MΩ min. at 500 VDC |
| Dielectric strength |
Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min |
| Vibration resistance |
Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance |
Destruction: 500 m/s2 3 times each in X, Y and Z directions |
| Degree of protection |
IEC: IP67 |
| Connection method |
Pre-wired models (2 m) |
| Material |
Case: Polyarylate |
| Accessories |
Mounting Bracket |
