Description

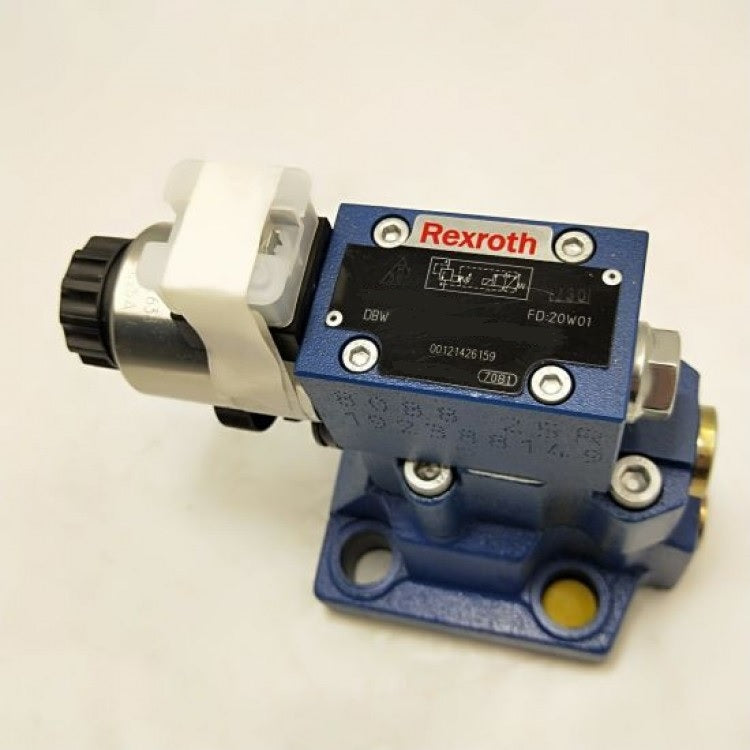

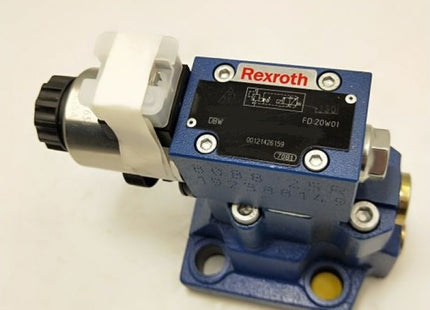

Pressure relief valve, pilot-operated
DATASHEET
Size 10
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 650 l/min
Features
For sub plate mounting
Porting pattern according to ISO 6264-06-09 (NG10),
ISO 6264-08-13 (NG25) and ISO 6264-10-17 (NG32)
For threaded connection
As cartridge valve (cartridge)
4 adjustment types for pressure adjustment, optionally:
– Rotary knob
– Bushing with hexagon and protective cap
– Lockable rotary knob with scale
– Rotary knob with scale
5 pressure ratings
Solenoid-actuated unloading via an installed directional
spool valve or directional seat valve
High-power solenoid
Explosion-protected solenoid (upon request)
Switching shock damping, optional (DBW type only)
Corrosion-protected design
