Description
Pneumatic connection, port 1
For tubing outer diameter of 4 mm
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Temperature-dependent operating pressure
-0.95 bar - 14 bar
Ambient temperature
-10 °C - 80 °C
Nominal size
2.8 mm
-
SizeStandard
-
Nominal size2.8 mm
-
Mounting positionoptional
-

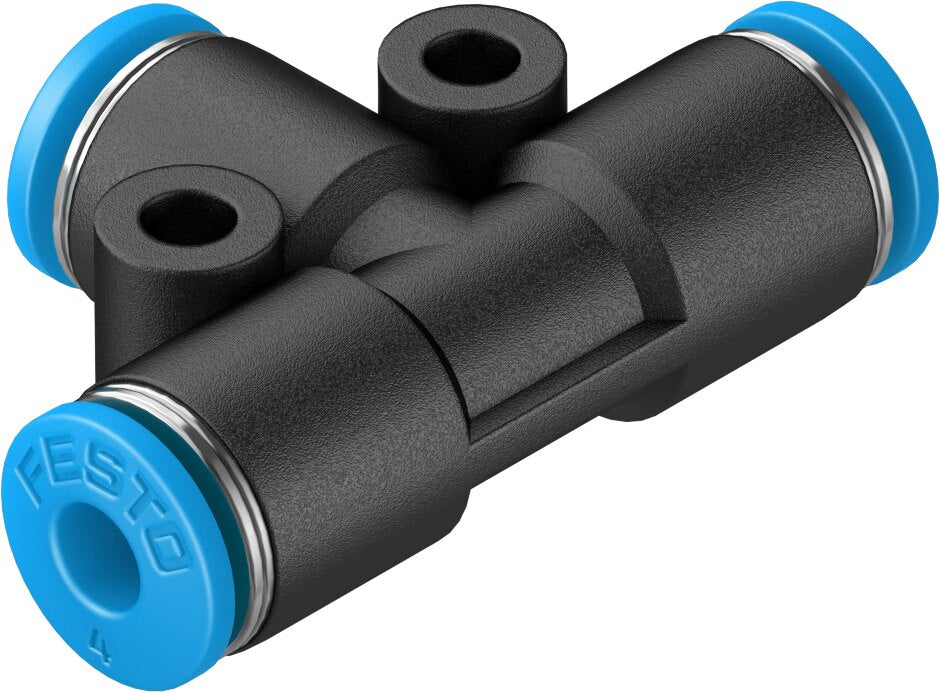

DesignT-shape
-
Size of pack10
-
DesignPush-pull principle
-
Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
-
Operating pressure complete temperature range-0.95 bar ... 6 bar
-
Operating pressure complete temperature range-13.775 psi ... 87 psi
-
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
-
Temperature-dependent operating pressure-0.95 bar ... 14 bar
-
Temperature-dependent operating pressure-13.775 psi ... 203 psi
-
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
-
Note on operating and pilot mediumLubricated operation possible
-
Corrosion resistance class CRC1 - Low corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
-
Ambient temperature-10 °C ... 80 °C
-
Product weight7.5 g
-
Number of outputs2
-
Number of supply lines1
-
Pneumatic connection, port 1For tubing outer diameter of 4 mm
-
Pneumatic connection, port 2For tubing outside diameter of 4 mm
-
Colour of release ringBlue
-
Note on materialsRoHS-compliant
-
Material housingPBT
-
Material release ringPOM
-
Material tubing sealNBR
-
Material tubing clamp componentHigh-alloy stainless steel
