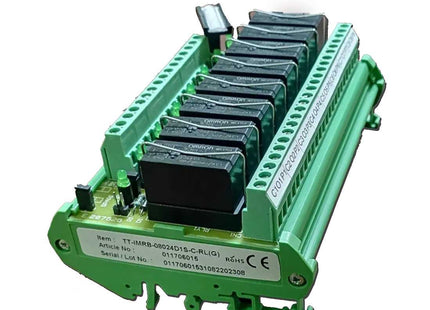

MODEL-RELAY BASE 8 CHANNEL TT-IMRB-08024DIS-C-RL(G) 8

Description

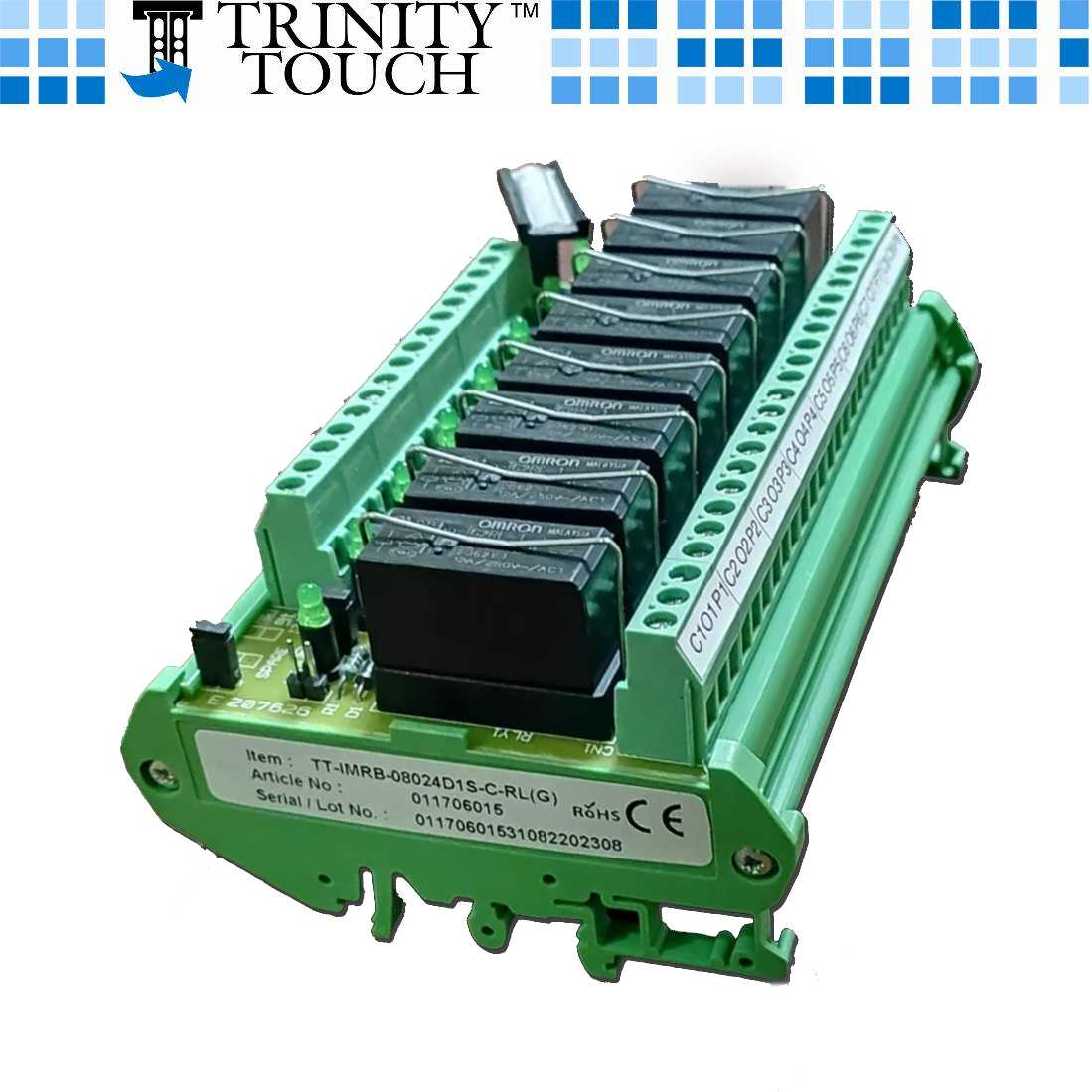

TT-IMRB-08024D1S-C-RL(G) 8 Channel Relay Card Trinity Touch 1 Change Over 24V DC Omron Relay Mounted

  • Number of Relays: 8 miniature relays.
  • Brand: Trinity Touch
  • Relay Brand: Omron Relay
  • Relay type: With base (Relay-Pluggable)
  • Coil voltage: 24V DC
  • No. of Conctats :1 Change over
  • Mounting Type: Mounting DIN 35 carrier rail
  • Freewheeling diode across relay coil for protection
  • Jumpers are provided for selection between positive looping / negative looping

TECHNICAL SPECIFICATION of TT-IMRB-08024D1S-C-RL(G)

COIL DATA of 8 Channel Relay Card Trinity Touch

  • Voltage: 24 V DC
  • Input current: 21.8 mA
  • Coil resistance: 1100 W

CONTACT DATA of TT-IMRB-08024D1S-C-RL(G)

  • No.of contact: 1PDT
  • Rated load (Resistive): 10A, 250V AC / 30V DC
  • Rated load (Inductive): 5A 30V DC / 7.5A, 250V AC
  • Contact resistance: 30 mOhm max

GENERAL DATA of TT-IMRB-08024D1S-C-RL(G)

  • Relay: Omron
  • Module height (H): 75 mm
  • Module depth (D): 90 mm
  • Color: Green
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C
  • Relative humidity: 5 to 95% RH
  • Indication: Green LED for input status
  • Protection: Freewheeling diode across relay coil
  • Looping on coil side: Common, remove all jumpers to make relay independent

MODEL-RELAY BASE 8 CHANNEL TT-IMRB-08024DIS-C-RL(G) 8

Product form

TT-IMRB-08024D1S-C-RL(G) 8 Channel Relay Card Trinity Touch 1 Change Over 24V DC Omron Relay Mounted Number of Relays: 8 miniature... Read more

Rs. 566.00 Excl. VAT

  • Shipped today? Order within: Jul 04, 2026 17:00:00 -0400

    Description

    TT-IMRB-08024D1S-C-RL(G) 8 Channel Relay Card Trinity Touch 1 Change Over 24V DC Omron Relay Mounted

    • Number of Relays: 8 miniature relays.
    • Brand: Trinity Touch
    • Relay Brand: Omron Relay
    • Relay type: With base (Relay-Pluggable)
    • Coil voltage: 24V DC
    • No. of Conctats :1 Change over
    • Mounting Type: Mounting DIN 35 carrier rail
    • Freewheeling diode across relay coil for protection
    • Jumpers are provided for selection between positive looping / negative looping

    TECHNICAL SPECIFICATION of TT-IMRB-08024D1S-C-RL(G)

    COIL DATA of 8 Channel Relay Card Trinity Touch

    • Voltage: 24 V DC
    • Input current: 21.8 mA
    • Coil resistance: 1100 W

    CONTACT DATA of TT-IMRB-08024D1S-C-RL(G)

    • No.of contact: 1PDT
    • Rated load (Resistive): 10A, 250V AC / 30V DC
    • Rated load (Inductive): 5A 30V DC / 7.5A, 250V AC
    • Contact resistance: 30 mOhm max

    GENERAL DATA of TT-IMRB-08024D1S-C-RL(G)

    • Relay: Omron
    • Module height (H): 75 mm
    • Module depth (D): 90 mm
    • Color: Green
    • Operating temperature: 0°C to 50°C
    • Storage temperature: -10°C to 60°C
    • Relative humidity: 5 to 95% RH
    • Indication: Green LED for input status
    • Protection: Freewheeling diode across relay coil
    • Looping on coil side: Common, remove all jumpers to make relay independent
