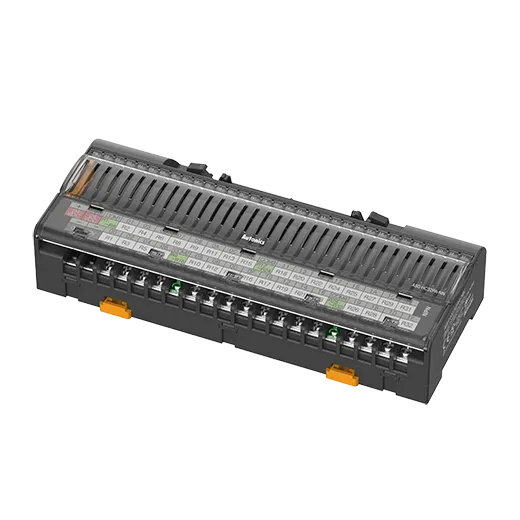

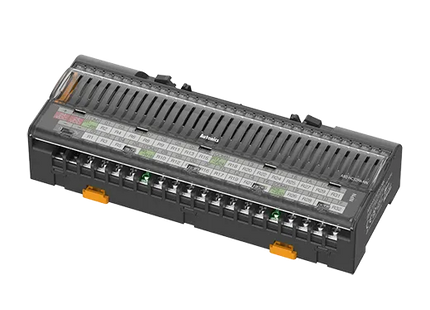

| Applied relay |
APAN3124 [MATSUSHITA(Panasonic)] |
| Rated voltage |
≤ 24 VDC ±10 % |
| Current consumption |
≤ 7.4 mA or ≤ 10.1 mA |
| Number of connector pins |
40 |
| Number of relay points |
32 |
| Terminal type |
Screw |
| Terminal pitch |
7.62 mm |
| Indicator |
Power indicator: red, operating indicator: blue |
| Applicable cable_Solid wire |
Ø 0.3 to Ø 1.2 mm |
| Applicable cable_Stranded wire |
AWG 22-16 (0.30 to 1.25 mm²) |
| Insulation resistance |
≥ 1,000 MΩ (500 VDC megger) |
| Dielectric strength_Between coil-contacts |
3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts |
1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature |
-15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Material |
CASE: MPPO, BASE: PA66 (G25 %), COVER: PC, terminal pin: brass, Ni-plating |
| Weight |
≈ 345 g (≈ 438 g) |
