MODEL- SEMI CONDUCTOR FUSE NS TYPE 80 AMP SIEMENS MAKE ( 3NE8 020 )

Description

DELIVERY  PERIOD : 1-2 WEEKS

Specifications

Brand

Siemens

Current Rating

80A

Fuse Size

NH00

Voltage Rating

690V ac

Fuse Standard

DIN 43620, IEC 60269-2-1, VDE 0636

Application Category

aR

Tag Width

6mm

High Rupture Capacity

Yes

Overall Length

79mm

Tag Type

Blade

Tag Orientation

Centred

Body Length

53mm

Body Width

30mm

Body Height

48mm

Series

3NE

Country of Origin

Greece

Product details

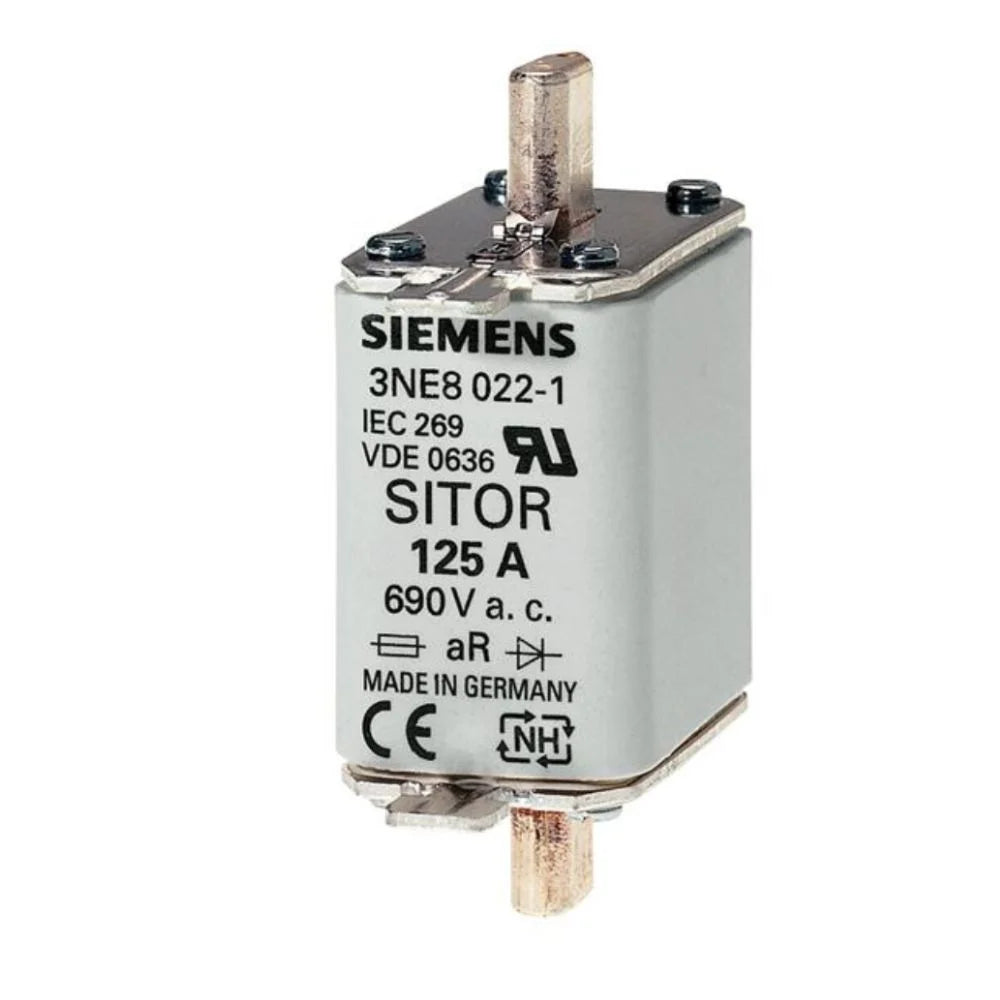

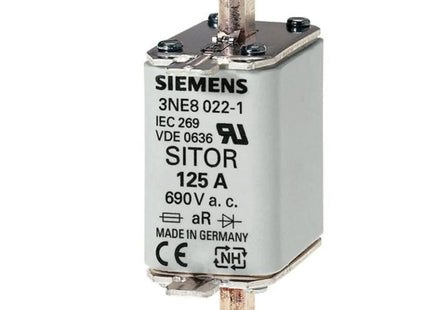

SITOR Fuses, 3NE8 Series, Size 00, Type aR




Semiconductor protection fuses
Operating class aR (partial-range semiconductor protection)
With blade contacts, for installation in NH fuse bases or load switches
SITOR NH fuse links are designed for the overload and short circuit protection of cables, wires and power rails as well as for semiconductor protection

Standards

IEC 60269-2

MODEL- SEMI CONDUCTOR FUSE NS TYPE 80 AMP SIEMENS MAKE ( 3NE8 020 )

Product form

DELIVERY  PERIOD : 1-2 WEEKS  Specifications Brand Siemens  Current Rating 80A Fuse Size NH00 Voltage Rating 690V ac Fuse Standard... Read more

Rs. 3,304.00 Incl. VAT

      Description

      DELIVERY  PERIOD : 1-2 WEEKS

      Specifications

      Brand

      Siemens

      Current Rating

      80A

      Fuse Size

      NH00

      Voltage Rating

      690V ac

      Fuse Standard

      DIN 43620, IEC 60269-2-1, VDE 0636

      Application Category

      aR

      Tag Width

      6mm

      High Rupture Capacity

      Yes

      Overall Length

      79mm

      Tag Type

      Blade

      Tag Orientation

      Centred

      Body Length

      53mm

      Body Width

      30mm

      Body Height

      48mm

      Series

      3NE

      Country of Origin

      Greece

      Product details

      SITOR Fuses, 3NE8 Series, Size 00, Type aR




      Semiconductor protection fuses
      Operating class aR (partial-range semiconductor protection)
      With blade contacts, for installation in NH fuse bases or load switches
      SITOR NH fuse links are designed for the overload and short circuit protection of cables, wires and power rails as well as for semiconductor protection

      Standards

      IEC 60269-2
