Primary brand
Mitsubishi Electric
Main function
AC servo drive
Product series / family name
MDS-EJ series
Functions
AC motion servo drive / amplifier
sine wave PWM control/current control method
fully closed loop control
Design
built-in dynamic brake
forced ventilation cooling
Supply voltage (AC)
200Vac-230Vac (200V class; 220Vac / 230Vac)
Type of network
Single-phase input (2P) or 3-phase input (3P)
Communication protocol
No communication interface
Degree of protection
IP20

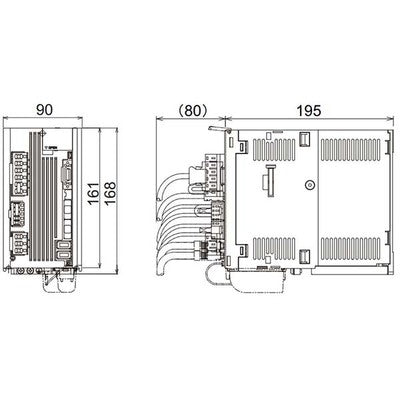

Dimensions
H168mm x W90mm x D195mm
Ambient air temperature for operation
0...+55 °C
Ambient air temperature for storage
-15°C...+70 °C
Current consumption
10.5A input
Technical compatibility with
HG series
Order code / Manufacturer SKU
MDS-EJ-V1-80
Manufacturer product status
Commercialized
Benefits
Ultra-compact drive units with built-in pwr. supplies contribute to reduced control panel size.
The servo control-dedicated core processor realizes an increase in control speed leading to improved basic performance.
This drive contributes to high-speed; high-accuracy control.
Safe torque off (STO) and safe brake control (SBC) are supported in effort to enhance safety features.
MDS-EJH 400V system drive unit is available.
