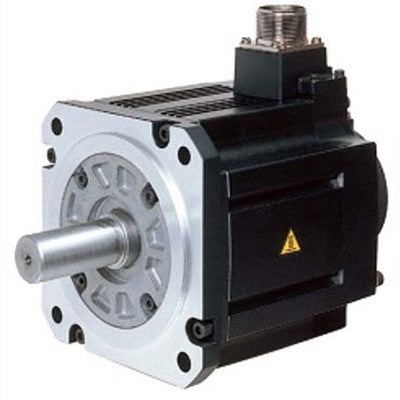

MODEL-SERVO MOTOR (HC-KF-S43BK)

Description

Specifications

Primary brand
Mitsubishi Electric
Main function
AC servo motor
Product series / family name
MELSERVO J2S series
Sub-range name
HC-KF series
Functions
AC brushless rotary servo motor
Design
keyed shaft
built-in e/m brake
built-in absolute feedback encod. (17-bit)
low inertia / small power capacity
fan cooling
Supply voltage (AC)
200Vac class
Rated current
2.3A
Rated active power (kW)
400W / 0.4kW
Rotational speed
3000rpm
4500rpm (maximum)
Torque
1.3Nm nominal
Maximum torque
3.8Nm
Moment of inertia
0.000051kg.m2 (0.51kg.cm2)
Mounting mode
60x60mm flange mounting
Resolution
17-bit (equivalent to 131072ppr) feedback
Degree of protection
IP55
Dimensions
H72.8mm x W62mm x D186.5mm
Net Height (mm)
72.8 mm
Net Width (mm)
62 mm
Net Depth (mm)
186.5 mm
Ambient air temperature for operation
0...+40 °C
Ambient air temperature for storage
-15°C...+70 °C
Maximum current
6.9 A
Order code / Manufacturer SKU
HC-KFS43BK
Manufacturer product status
Discontinued

MODEL-SERVO MOTOR (HC-KF-S43BK)

Product form

Specifications Primary brand Mitsubishi Electric Main function AC servo motor Product series / family name MELSERVO J2S series Sub-range name... Read more

Rs. 21,830.00 Excl. VAT

    Description

    Specifications

    Primary brand
    Mitsubishi Electric
    Main function
    AC servo motor
    Product series / family name
    MELSERVO J2S series
    Sub-range name
    HC-KF series
    Functions
    AC brushless rotary servo motor
    Design
    keyed shaft
    built-in e/m brake
    built-in absolute feedback encod. (17-bit)
    low inertia / small power capacity
    fan cooling
    Supply voltage (AC)
    200Vac class
    Rated current
    2.3A
    Rated active power (kW)
    400W / 0.4kW
    Rotational speed
    3000rpm
    4500rpm (maximum)
    Torque
    1.3Nm nominal
    Maximum torque
    3.8Nm
    Moment of inertia
    0.000051kg.m2 (0.51kg.cm2)
    Mounting mode
    60x60mm flange mounting
    Resolution
    17-bit (equivalent to 131072ppr) feedback
    Degree of protection
    IP55
    Dimensions
    H72.8mm x W62mm x D186.5mm
    Net Height (mm)
    72.8 mm
    Net Width (mm)
    62 mm
    Net Depth (mm)
    186.5 mm
    Ambient air temperature for operation
    0...+40 °C
    Ambient air temperature for storage
    -15°C...+70 °C
    Maximum current
    6.9 A
    Order code / Manufacturer SKU
    HC-KFS43BK
    Manufacturer product status
    Discontinued
