Primary brand
Mitsubishi Electric
Main function

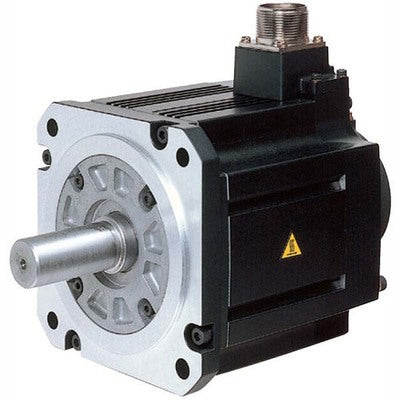

AC servo motor
Product series / family name
MELSERVO J3 series
Sub-range name
HF-SP series
Functions
AC brushless rotary servo motor
Design
straight shaft
built-in e/m brake
built-in absolute feedback encod. (18-bit)
medium inertia / medium power capacity
Supply voltage (AC)
200Vac class
Rated active power (kW)
3500W / 3.5kW
Rotational speed
2000rpm
3000rpm (maximum)
Moment of inertia
0.00847kg.m2 (84.7kg.cm2)
Mounting mode
176x176mm flange mounting
Degree of protection
IP67
Dimensions
H228.9mm x W176mm x D312mm
Ambient air temperature for operation
0...+40 °C
Ambient air temperature for storage
-15°C...+70 °C
Order code / Manufacturer SKU
HF-SP352B
Manufacturer product status
Discontinued
Benefits
medium inertia
two types of the rated speed are available
application for material handling systems
robots
x-y tables
