Description

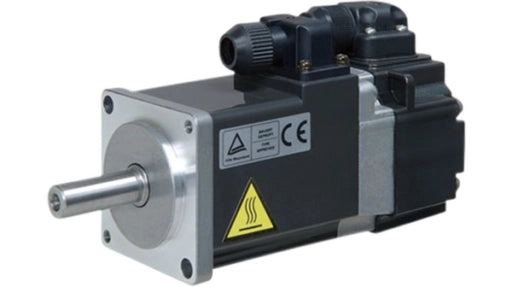

FA-Servo-Motion: Servo Motor
| Series |
MELSERVO-JE |
| Type |
HG-KN |
| Power Supply (V) |
200 |
| Rated Capacity (kW) |
0,2 |
| Inertia |
LOW INERTIA |
| Rated Torque (Nm) |
0,64 |
| Maximum Torque (Nm) |
1,9 |
| Rated Speed (rpm) |
3000 |
| Maximum Speed (rpm) |
5000 |
| Inertia (kg*cm2) |
0,247 |
| Brake |
YES |
| Shaft Type |
KEYWAY |
| Protection Class |
IP65 |
| Current Type |
AC |
| Encoder Type |
17-BIT |
| Encoder Resolution (p/rev) |
131072 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
60 |
| Height (mm) |
77,1 |
| Depth (mm) |
154,8 |
| Weight (kg) |
1,4 |
Product Packaging
