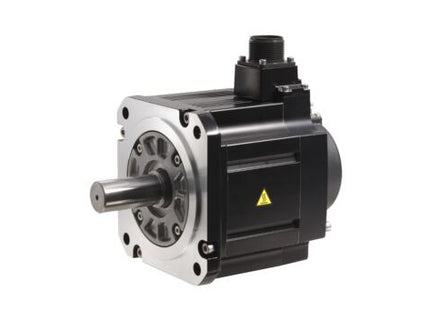

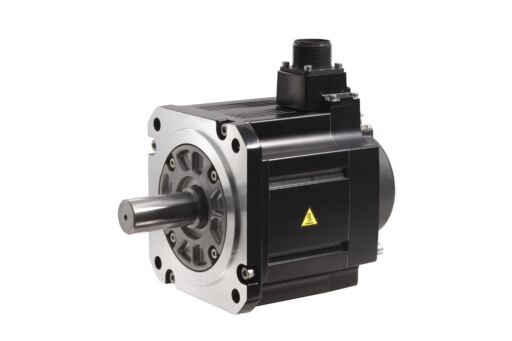

MODEL-SERVO MOTOR HG-SR702B I-95

Description

FA-Servo-Motion: Servo Motor

Series MELSERVO-J4
Type HG-SR
Power Supply (V) 200
Rated Capacity (kW) 7
Inertia MEDIUM INERTIA
Rated Torque (Nm) 33,4
Maximum Torque (Nm) 100
Rated Speed (rpm) 2000
Maximum Speed (rpm) 3000
Inertia (kg*cm2) 161
Brake YES
Shaft Type STRAIGHT SHAFT
Protection Class IP67
Current Type AC
Encoder Type 22-BIT
Encoder Resolution (p/rev) 4194304

Product Dimensions & Weight

Width (mm) 176
Height (mm) 176
Depth (mm) 268
Weight (kg) 33

Conformity

CE COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

MODEL-SERVO MOTOR HG-SR702B I-95

Product form

FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-SR Power Supply (V) 200 Rated Capacity (kW) 7 Inertia MEDIUM INERTIA Rated Torque... Read more

Rs. 112,933.08 Excl. VAT

  • Shipped today? Order within: Mar 04, 2026 17:00:00 -0500

    Description

    FA-Servo-Motion: Servo Motor

    Series MELSERVO-J4
    Type HG-SR
    Power Supply (V) 200
    Rated Capacity (kW) 7
    Inertia MEDIUM INERTIA
    Rated Torque (Nm) 33,4
    Maximum Torque (Nm) 100
    Rated Speed (rpm) 2000
    Maximum Speed (rpm) 3000
    Inertia (kg*cm2) 161
    Brake YES
    Shaft Type STRAIGHT SHAFT
    Protection Class IP67
    Current Type AC
    Encoder Type 22-BIT
    Encoder Resolution (p/rev) 4194304

    Product Dimensions & Weight

    Width (mm) 176
    Height (mm) 176
    Depth (mm) 268
    Weight (kg) 33

    Conformity

    CE COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
