Primary brand
Mitsubishi Electric
Main function
AC servo motor
Product series / family name

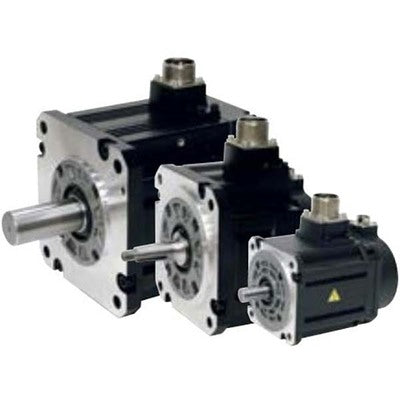

HG series
Functions
AC brushless rotary servo motor
Design
straight shaft
built-in absolute feedback encod. (20-bit)
medium inertia
Supply voltage (AC)
200Vac class
Rated active power (kW)
3000W / 3kW
Rotational speed
2000rpm
3000rpm (maximum)
Moment of inertia
0.0075kg.m2 (75kg.cm2)
Mounting mode
176x176mm flange mounting
Resolution
20-bit (equivalent to 1048576 ppr) feedback
Degree of protection
IP67
Order code / Manufacturer SKU
HG303S-D48
Manufacturer product status
Commercialized
Benefits
Multi-hybrid drives
A line of high-performance multi-hybrid drive units are available
The multi-hybrid drive unit drives a maximum of three servo axes and one spindle
Supporting the downsizing of units and offering technical advantages
