Description

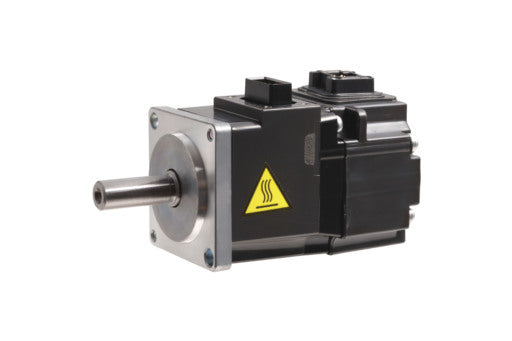

FA-Servo-Motion: Servo Motor
| Series |
MELSERVO-J4 |
| Type |
HG-KR |
| Power Supply (V) |
200 |
| Rated Capacity (kW) |
0,2 |
| Inertia |
LOW INERTIA |
| Rated Torque (Nm) |
0,64 |
| Maximum Torque (Nm) |
2,2 |
| Rated Speed (rpm) |
3000 |
| Maximum Speed (rpm) |
6000 |
| Inertia (kg*cm2) |
0,243 |
| Brake |
YES |
| Shaft Type |
STRAIGHT SHAFT |
| Protection Class |
IP65 |
| Current Type |
AC |
| Encoder Type |
22-BIT |
| Encoder Resolution (p/rev) |
4194304 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
60 |
| Height (mm) |
77,1 |
| Depth (mm) |
113,4 |
| Weight (kg) |
1,3 |
Product Packaging
| Cardboard (g) |
110 |
| Other paper (g) |
35 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
23 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
