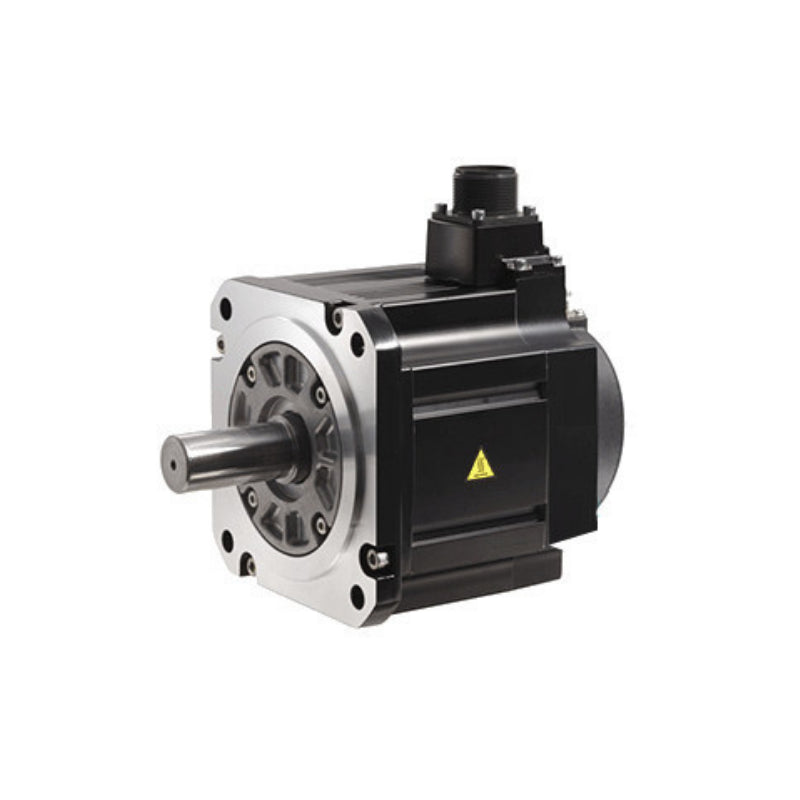

MODEL - SERVO MOTORHG-SN202BJ-S100- MITSUBISHI

Description

  • Estimated Lead Time : Usually ships in 1-10 working days.

  • Manufacturer : Mitsubishi Electric

  • Product No. : HG-SN202BJ-S100

  • Product Type : Servo Motor

  • Model Designation :

    • HG-SN = Series

    • 20 = Rated output [2.0 kW]

    • 2 = Rated speed [2000 r/min]

    • B = With Electromagnet Brake

    • J = Oil seal Installed

  • Specifications :

    • Rated output [kW] : 2.0

    • Rated torque [N•m] : 9.55

    • Rated speed [r/min]  : 2000

    • Maximum speed [r/min] : 3000

    • Instantaneous permissible speed [r/min] : 3450

    • Rated current [A] : 9.6

    • Maximum current [A] : 31

    • Power Rate at Continuous Rated Torque [kW/s] : 16.1

    • Recommended load to motor inertia ratio : 15 times or less

    • Insulation class : 155 (F)

    • Structure : Totally enclosed, natural cooling (IP rating: IP67)

    • Vibration rank : V10

  • Environment :

    • Ambient temperature : Operation: 0 °C to 40 °C (non-freezing), storage: -15 °C to 70 °C (non-freezing)

    • Ambient humidity Operation : 10 %RH to 80 %RH (non-condensing), storage: 10 %RH to 90 %RH (non-condensing)

    • Ambience : Indoors (no direct sunlight), free from corrosive gas, flammable gas, oil mist, dust, and dirt

    • Altitude : max 2000m or less above sea level

    • Vibration resistance : X, Y: 24.5 m/s2

  • Weight : 17 Kg

  • Shipping Weight : 18 Kg

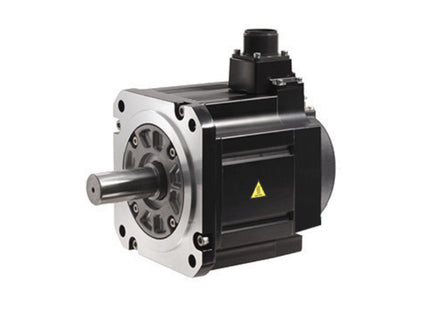

MODEL - SERVO MOTORHG-SN202BJ-S100- MITSUBISHI

Product form

Estimated Lead Time : Usually ships in 1-10 working days. Manufacturer : Mitsubishi Electric Product No. : HG-SN202BJ-S100 Product Type... Read more

Rs. 59,554.60 Excl. VAT

  • Shipped today? Order within: Jul 02, 2026 17:00:00 -0400

    Description

    • Estimated Lead Time : Usually ships in 1-10 working days.

    • Manufacturer : Mitsubishi Electric

    • Product No. : HG-SN202BJ-S100

    • Product Type : Servo Motor

    • Model Designation :

      • HG-SN = Series

      • 20 = Rated output [2.0 kW]

      • 2 = Rated speed [2000 r/min]

      • B = With Electromagnet Brake

      • J = Oil seal Installed

    • Specifications :

      • Rated output [kW] : 2.0

      • Rated torque [N•m] : 9.55

      • Rated speed [r/min]  : 2000

      • Maximum speed [r/min] : 3000

      • Instantaneous permissible speed [r/min] : 3450

      • Rated current [A] : 9.6

      • Maximum current [A] : 31

      • Power Rate at Continuous Rated Torque [kW/s] : 16.1

      • Recommended load to motor inertia ratio : 15 times or less

      • Insulation class : 155 (F)

      • Structure : Totally enclosed, natural cooling (IP rating: IP67)

      • Vibration rank : V10

    • Environment :

      • Ambient temperature : Operation: 0 °C to 40 °C (non-freezing), storage: -15 °C to 70 °C (non-freezing)

      • Ambient humidity Operation : 10 %RH to 80 %RH (non-condensing), storage: 10 %RH to 90 %RH (non-condensing)

      • Ambience : Indoors (no direct sunlight), free from corrosive gas, flammable gas, oil mist, dust, and dirt

      • Altitude : max 2000m or less above sea level

      • Vibration resistance : X, Y: 24.5 m/s2

    • Weight : 17 Kg

    • Shipping Weight : 18 Kg
