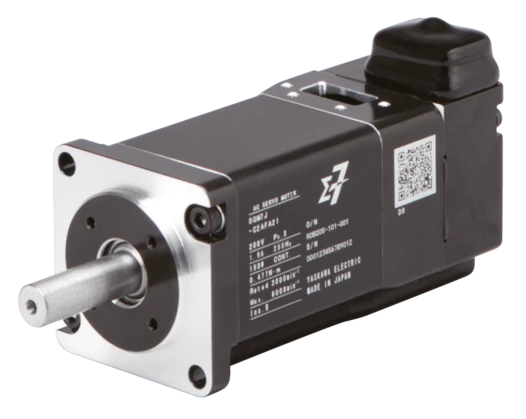

MODEL-SERVO MTR M.LASER(SGM-7J-04AFA61) YASKAWA

Description

Overview

  • 24-bit high-resolution encoder installed
  • High efficiency, low heat generation
  • Downsizing by up to 20%
  • Flange compatible with Sigma-5
  • Medium inertia, high speed

    Technical Details

    • Input power supply
    • 200 V
    • Rated output
    • 0.4 kW
    • Shaft end
    • Straight with key and tap
    • Encoder resolution
    • 24 bit
    • Encoder type
    • Incremental
    • Options
    • Without options
    • Height
    • 74.7 mm
    • Width
    • 60 mm
    • Depth
    • 115.5 mm
    • Weight
    • 1.1 kg
    • Allowable Load Moment of Inertia
    • 10 Times
    • Rated torque
    • 1.27 Nm
    • Instantaneous maximum torque
    • 4.46 Nm
    • Rated Motor Speed
    • 3000 1/min
    • Maximum motor speed
    • 6000 1/min
    • Motor Moment of Inertia
    • 0.486 x10⁻⁴ kg·m²
    • Flange Dimension (LC)
    • 60 mm
    • Flange Diameter (LA)
    • 70 mm
    • Shaft End Diameter (S)
    • 14 mm
    • Shaft End Length (Q)
    • 30 mm

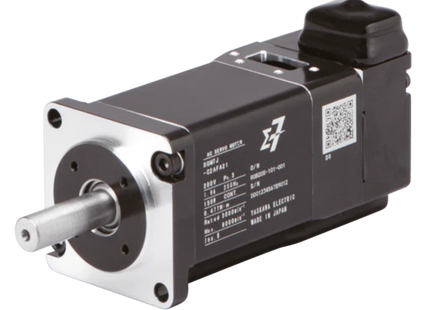

    MODEL-SERVO MTR M.LASER(SGM-7J-04AFA61) YASKAWA

    Product form

    Overview 24-bit high-resolution encoder installed High efficiency, low heat generation Downsizing by up to 20% Flange compatible with Sigma-5 Medium... Read more

    Rs. 16,625.00 Excl. VAT

      Description

      Overview

      • 24-bit high-resolution encoder installed
      • High efficiency, low heat generation
      • Downsizing by up to 20%
      • Flange compatible with Sigma-5
      • Medium inertia, high speed

        Technical Details

        • Input power supply
        • 200 V
        • Rated output
        • 0.4 kW
        • Shaft end
        • Straight with key and tap
        • Encoder resolution
        • 24 bit
        • Encoder type
        • Incremental
        • Options
        • Without options
        • Height
        • 74.7 mm
        • Width
        • 60 mm
        • Depth
        • 115.5 mm
        • Weight
        • 1.1 kg
        • Allowable Load Moment of Inertia
        • 10 Times
        • Rated torque
        • 1.27 Nm
        • Instantaneous maximum torque
        • 4.46 Nm
        • Rated Motor Speed
        • 3000 1/min
        • Maximum motor speed
        • 6000 1/min
        • Motor Moment of Inertia
        • 0.486 x10⁻⁴ kg·m²
        • Flange Dimension (LC)
        • 60 mm
        • Flange Diameter (LA)
        • 70 mm
        • Shaft End Diameter (S)
        • 14 mm
        • Shaft End Length (Q)
        • 30 mm
