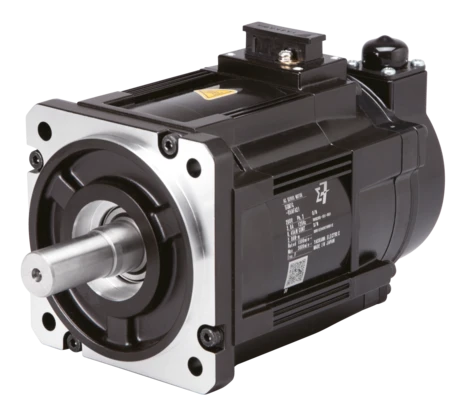

Model-SGM7G-20AFA61-Make Yaskawa

Description

Technical Details

  • Input power supply
  • 200 V
  • Rated output
  • 1.8 kW
  • Shaft end
  • Straight with key and tap
  • Encoder resolution
  • 24 bit
  • Encoder type
  • Incremental
  • Options
  • Without options
  • Height
  • 169 mm
  • Width
  • 130 mm
  • Depth
  • 229 mm
  • Weight
  • 8.6 kg
  • Allowable Load Moment of Inertia
  • 5 Times
  • Rated torque
  • 11.5 Nm
  • Instantaneous maximum torque
  • 28.7 Nm
  • Rated Motor Speed
  • 1500 1/min
  • Maximum motor speed
  • 3000 1/min
  • Motor Moment of Inertia
  • 26 x10⁻⁴ kg·m²
  • Flange Dimension (LC)
  • 130 mm
  • Flange Diameter (LA)
  • 145 mm
  • Shaft End Diameter (S)
  • 24 mm
  • Shaft End Length (Q)
  • 40 mm

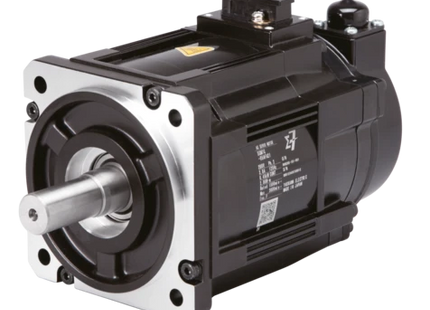

Model-SGM7G-20AFA61-Make Yaskawa

Product form

Technical Details Input power supply 200 V Rated output 1.8 kW Shaft end Straight with key and tap Encoder resolution... Read more

Rs. 52,958.00 Incl. VAT

  • Shipped today? Order within: Nov 07, 2025 17:00:00 -0500

    Description

    Technical Details

    • Input power supply
    • 200 V
    • Rated output
    • 1.8 kW
    • Shaft end
    • Straight with key and tap
    • Encoder resolution
    • 24 bit
    • Encoder type
    • Incremental
    • Options
    • Without options
    • Height
    • 169 mm
    • Width
    • 130 mm
    • Depth
    • 229 mm
    • Weight
    • 8.6 kg
    • Allowable Load Moment of Inertia
    • 5 Times
    • Rated torque
    • 11.5 Nm
    • Instantaneous maximum torque
    • 28.7 Nm
    • Rated Motor Speed
    • 1500 1/min
    • Maximum motor speed
    • 3000 1/min
    • Motor Moment of Inertia
    • 26 x10⁻⁴ kg·m²
    • Flange Dimension (LC)
    • 130 mm
    • Flange Diameter (LA)
    • 145 mm
    • Shaft End Diameter (S)
    • 24 mm
    • Shaft End Length (Q)
    • 40 mm
