Description

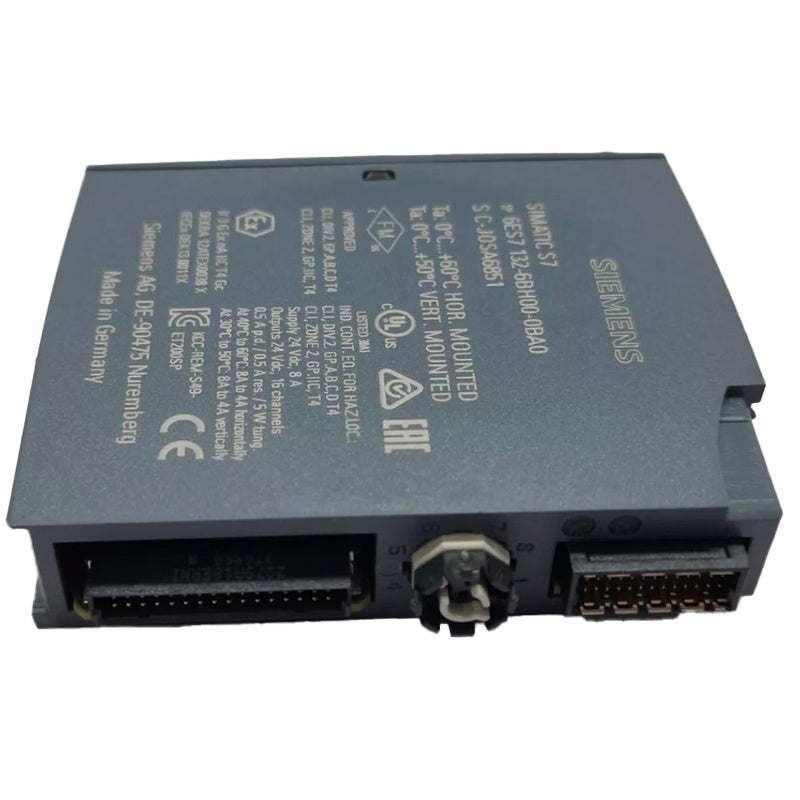

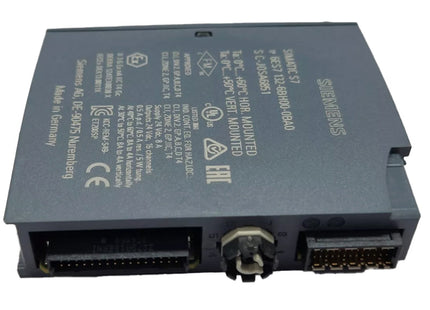

Module 6ES7132-6BH01-0BA0 is a digital output module belonging to the SIMATIC ET 200SP system from Siemens. Below is its detailed description and technical data:
General description:
-
Type: Digital Output Module (Digital Output - DQ)
-
Series: SIMATIC ET 200SP
-
Number of outputs: 16
-
Output voltage: 24 V DC
-
Output current: 0,5 A per output
-
Output type: Source (PNP)
-
Base: Type BU-A0
-
Color code: CC00
-
Diagnostics: Built-in diagnostics for short circuit to L+ and ground, open circuit, and supply voltage.
-
Additional functions: Substitute value output.
Main technical data:
-
Supply voltage: 24 V DC (allowable range 19.2 V to 28.8 V)
-
Output current per channel: 0.5 A
-
Level of security: IP20
-
Dimensions:
