Description
The Single Infrared Beam Sensor is a precision optical sensing device designed for reliable obstacle detection in automatic gates, garage doors, barrier systems, and security automation. Operating on 12–24V DC/AC, it uses a powerful 940nm infrared beam and an operating frequency of 1.92kHz to ensure accurate detection with minimal false triggers. With a detection range of up to 15 meters and IP55-rated weather resistance, it performs flawlessly in both indoor and outdoor environments.
Its N.C. / N.O. relay output makes it compatible with a wide range of control systems, while its compact and durable construction allows easy installation in tight spaces. Ideal for enhancing safety, preventing collisions, and automating security systems.
Features of Single Infrared Beam Sensor:
- Long Detection Range: Detects obstacles up to 15m.
- Wide Voltage Compatibility: 12–24V DC/AC operation.
- Weatherproof Design: IP55-rated for outdoor use.
- Reliable Operation: Infrared frequency of 1.92kHz with 940nm wavelength.
- Versatile Output: N.C. / N.O. relay configuration for multiple applications.
- Temperature Resistant: Works from -25°C to +55°C.
Specifications of Single Infrared Beam Sensor:
- Operating Voltage: 12–24V DC/AC
- Detecting Range: ≤15m
- Infrared Frequency: 1.92kHz
- Wavelength: 940nm
- Operating Temperature: -25°C to +55°C
- Relay Output: N.C. / N.O.
- Dimensions (L × W × H): 49.2 × 75.3 × 29.6 mm
- Protection Rating: IP55

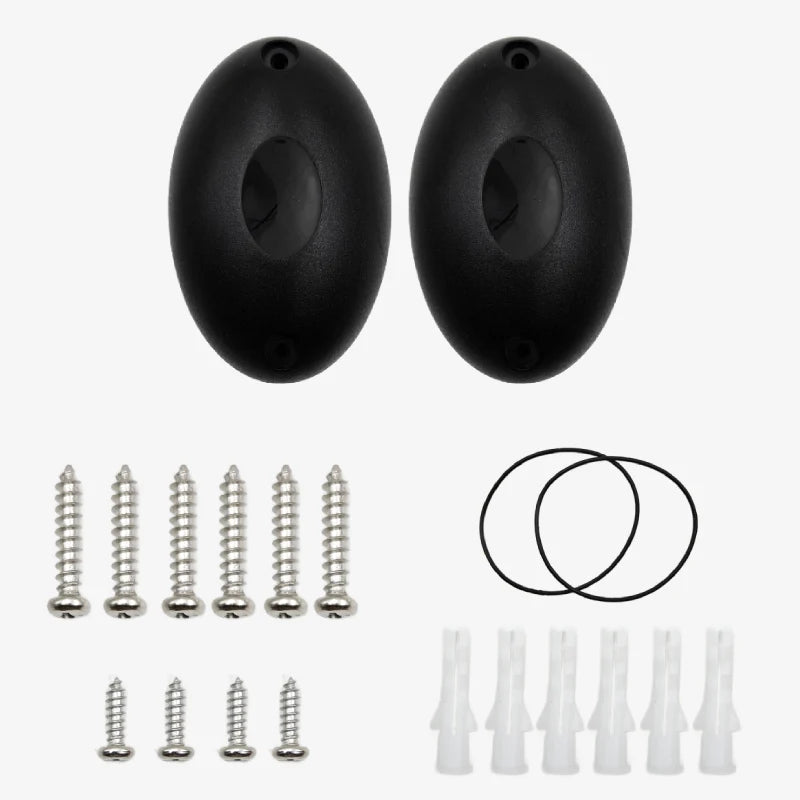

Package Includes:
2 × Infrared Beam Sensor Units (Transmitter & Receiver)
