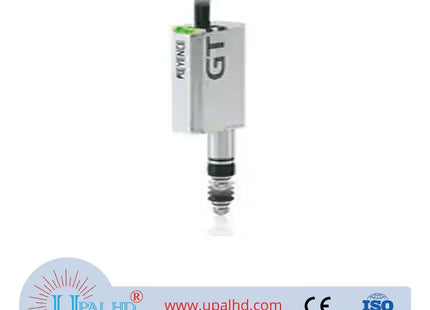

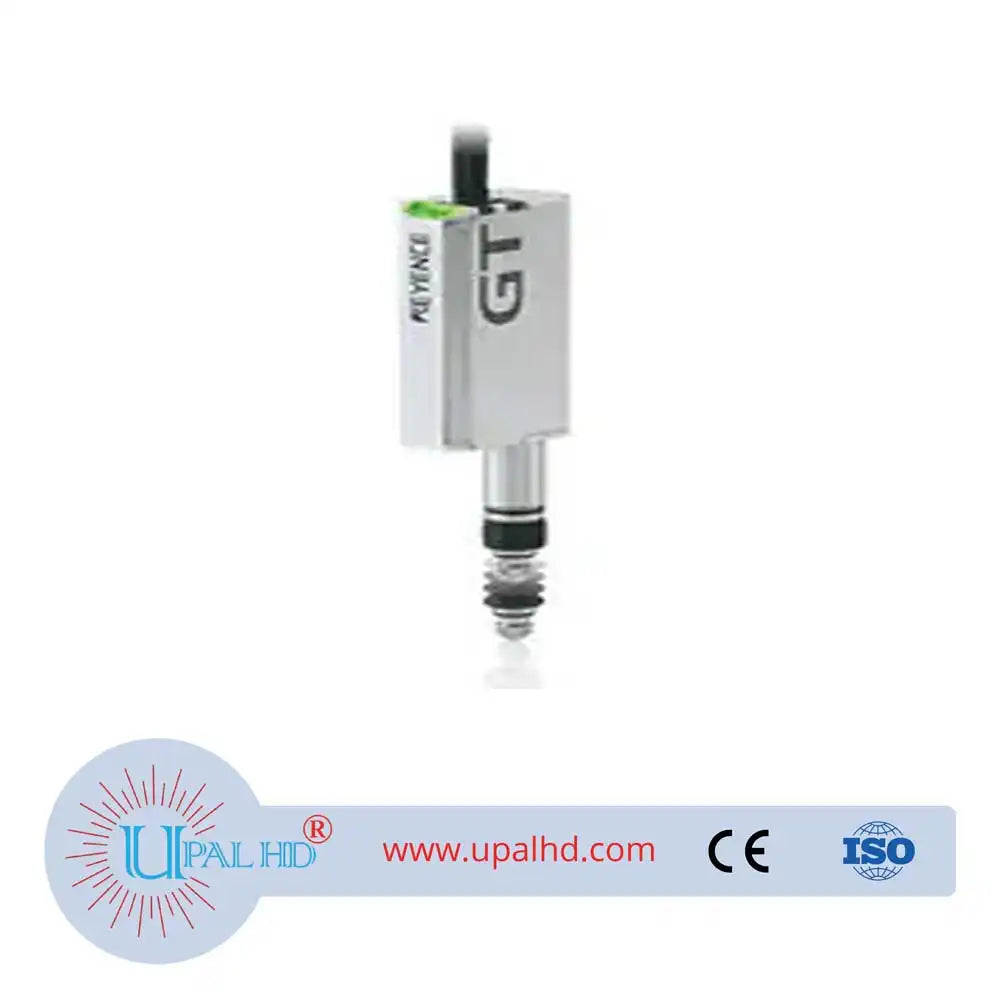

Name: Model-SN-16 Digital Contact Sensor-GT-H10-Make Keyence
Brand: Industry Baba
Price: 24780.0 INR
Availability: InStock

Model-SN-16 Digital Contact Sensor-GT-H10-Make Keyence

Product form

Model GT-H10 Type Sensor head: Standard Measuring range 10 mm 0.39″ Measuring force Downward mounting 1.0 N*1 Side mounting 0.9 N*1... Read more

Rs. 24,780.00 Excl. VAT

Model		GT-H10
Type		Sensor head: Standard
Measuring range		10 mm 0.39″
Measuring force	Downward mounting	1.0 N^*1
	Side mounting	0.9 N^*1
	Upward mounting	0.8 N^*1
Mechanical response		10 Hz (at ambient temperature of 23 °C 73 °F)
Repeatability		3 µm 0.00012″ (at ambient temperature of 23 °C 73 °F)^*2
Environmental resistance	Enclosure rating	IP67
	Ambient temperature	-10 to +55 °C 14 to 131 °F
	Relative humidity	35 to 85 % RH
Material		Housing: TYPE430 Stainless steel, Indicator: Polyarylate, Dust boot: NBR, Contact: TYPE304 stainless steel, Cable: PVC
Weight		Approx. 115 g (With 2-m 6.6′ cable)

Model		GT-H10
Type		Sensor head: Standard
Measuring range		10 mm 0.39″
Measuring force	Downward mounting	1.0 N^*1
	Side mounting	0.9 N^*1
	Upward mounting	0.8 N^*1
Mechanical response		10 Hz (at ambient temperature of 23 °C 73 °F)
Repeatability		3 µm 0.00012″ (at ambient temperature of 23 °C 73 °F)^*2
Environmental resistance	Enclosure rating	IP67
	Ambient temperature	-10 to +55 °C 14 to 131 °F
	Relative humidity	35 to 85 % RH
Material		Housing: TYPE430 Stainless steel, Indicator: Polyarylate, Dust boot: NBR, Contact: TYPE304 stainless steel, Cable: PVC
Weight		Approx. 115 g (With 2-m 6.6′ cable)
