Description

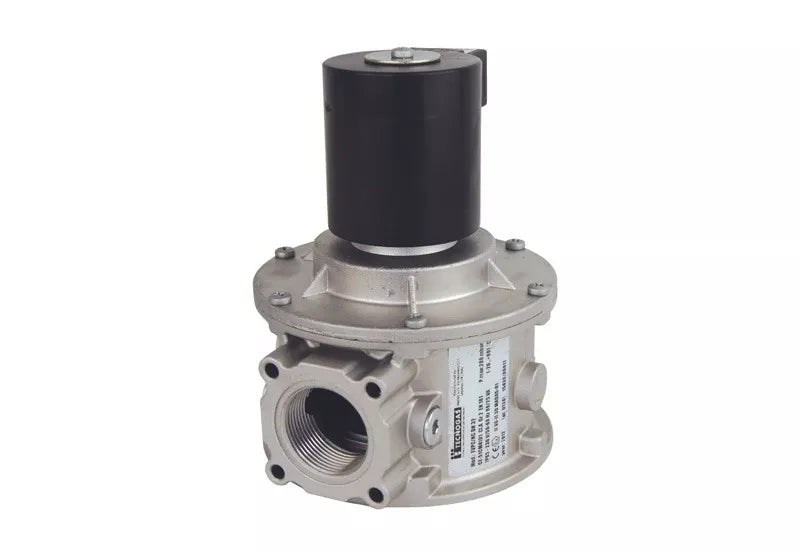

Madas EVP/NC + EVPC/NC Automatic “Normally-Closed” Solenoid Valves
Gas interception “automatic normally-closed” Solenoid Valves that open when they are powered and close when there is no tension.
Option flow regulator.
The Madas Solenoid Valve can be supplied also with the closed position indicator switch (CPI Switch) and with the possibility of speed opening adjustment (EVPR versions).
Reference standard EN 161
In conformity to Directive 2009/142/EC (Gas Directive)
In conformity to Directive 94/9/EC (ATEX Directive)
In conformity to Directive 2004/108/EC (Electromagnetic Compatibility)
In conformity to Directive 2006/95/EC (Low Tension)
Type EVP/NC + EVPC/NC
- Automatic reset
- 230v AC
- Power options available: 24v AC, 24v DC, 110v AC
- Inline connections, horizontal and vertical pipelines
- For Natural Gas, Propane, and Butane, with the option for Biogas
Please note: they must be installed with the arrow on the body of the device facing towards the user appliance, pipe in horizontal position and the Actuator in the “up-position”.
