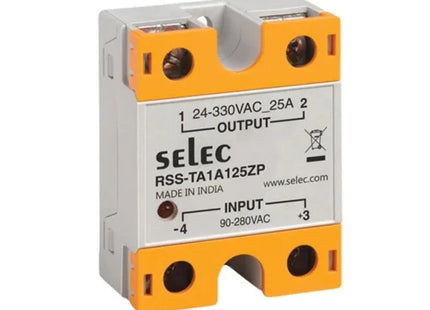

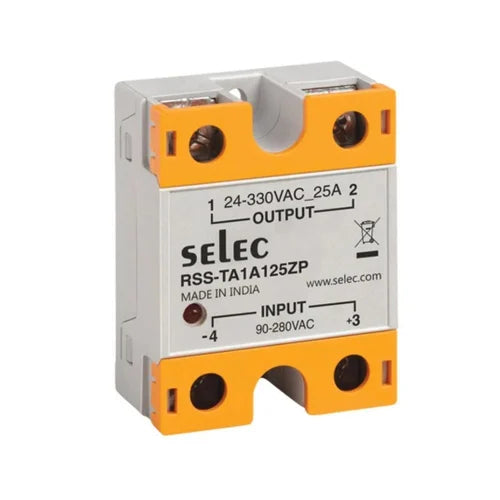

AC Input, AC Output 25A system is designed to convert incoming AC power into a stable AC output with a 25A current rating, typically used for power distribution and backup systems. It ensures efficient and reliable operation for various applications, with protection features like overload and short-circuit safeguards.
Key Specifications
-
Product Type: AC-input, AC-output Solid State Relay (SSR)
-
Control/Input Voltage: 90 – 280 V AC
-
Load/Output Voltage: Two ranges depending on variant:
-
Max Load Current: 25 A
-
Contact Configuration: 1 NO (Normally Open)
-
Output Device: TRIAC
-
Mounting Style: Panel mount
-
Weight: 88.7 g
-
Indication: LED status indication (to show when control/input is active)
-
Certification: CE certified
Features & Applications
-
Compact Design: Small form factor for space-constrained panels.
-
Solid-State Switching: Uses TRIAC — no mechanical parts → more reliable, silent switching, longer lifespan under frequent switching.
-
Wide Voltage Ranges:
-
Input supports a broad range of AC control voltage (90–280 V).
-
Output can handle different AC voltages, depending on the variant (24–330 V or up to 480 V).
-
Current Handling: 25 A load current makes it suitable for medium-power loads (resistive or lightly inductive).
-
Panel Installation: Designed for secure panel mounting.
-
Industrial Use Cases: Commonly used for heating control, lighting control, HVAC, or other industrial automation where AC-AC switching is needed.
